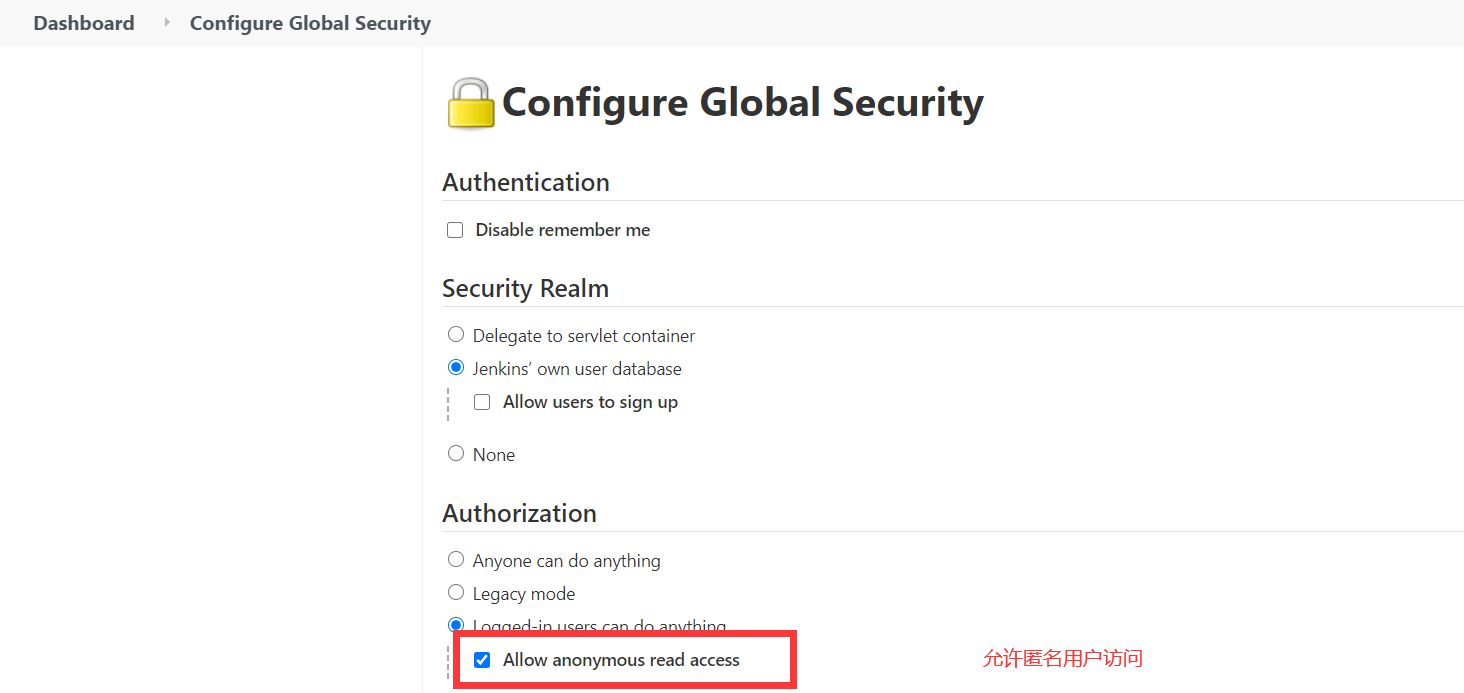

4.调整安全选项
5.安装Blue Ocean插件
6.最后的检验工作
1.检查jenkins容器里的docker客户端
2.检查jenkins容器里的SSH key
3.检查jenkins容器里连接harbor.od.com
第五章：制作dubbo微服务的底包镜像
第六章：使用jenkins持续构建交付dubbo服务的提供者

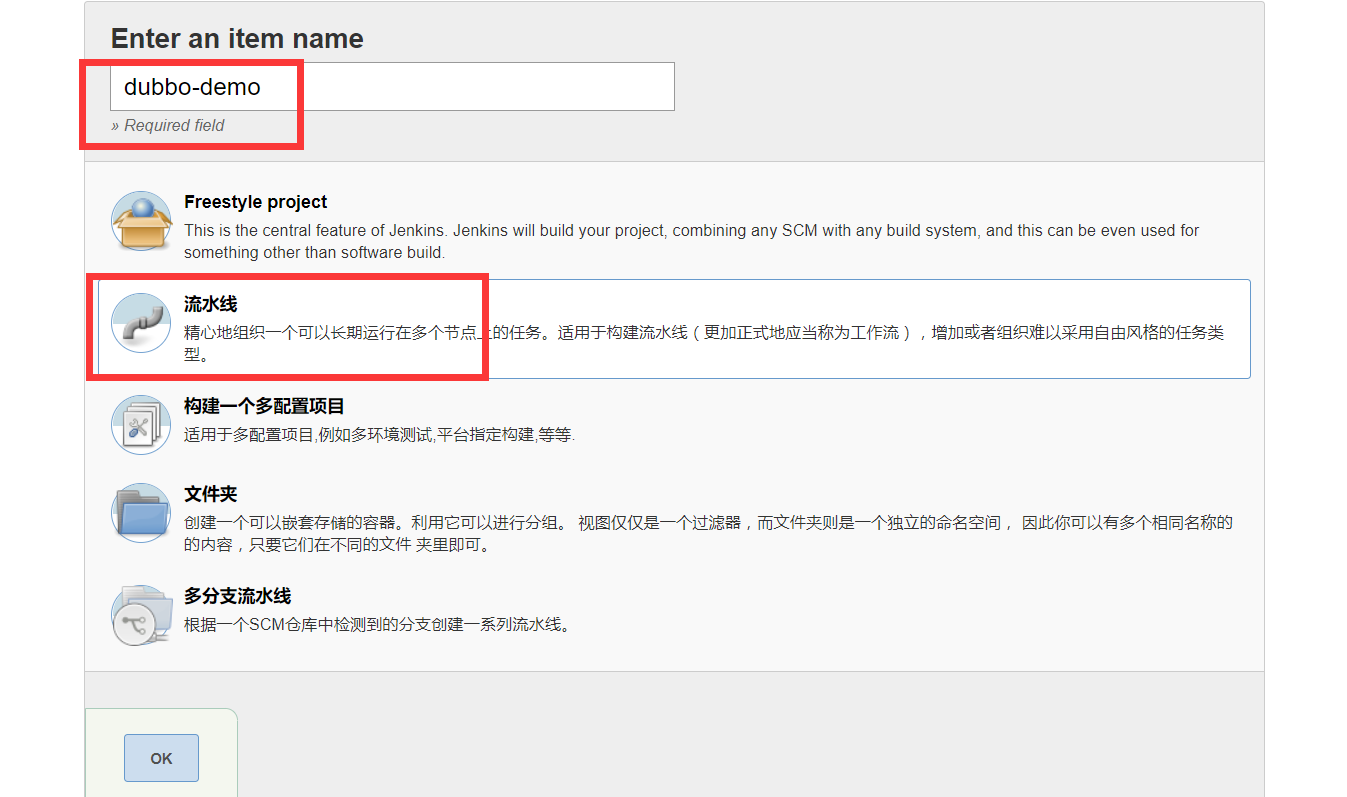

1.配置New job

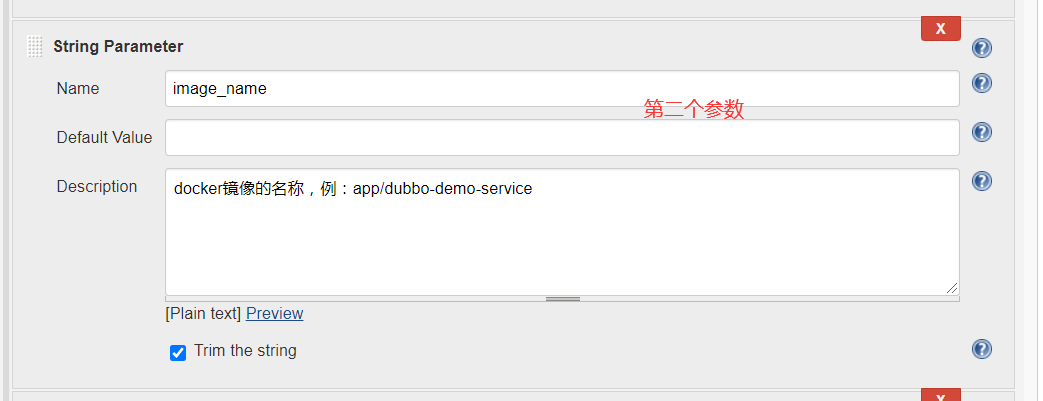

2.Pipeline Script
第七章：交付dubbo微服务至kubernetes集群
1.dubbo服务提供者（dubbo-demo-service）
1.通过jenkins进行一次CI

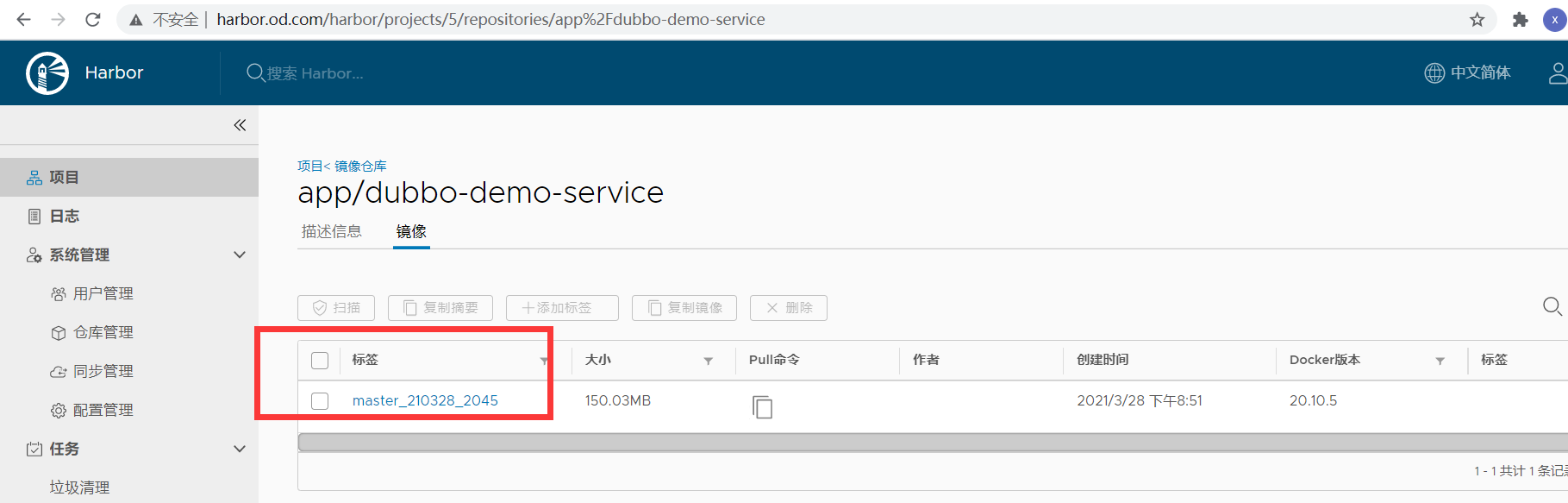

2.检查harbor仓库内镜像
3..准备k8s资源配置清单(CD过程)
4.应用资源配置清单
5.检查docker运行情况及zk里的信息
6.查看dubbo-demo-service的日志
2.交付dubbo-monitor监控服务到K8S
1.下载源码并解压
2.修改配置
3.制作镜像
4.解析域名
5.准备k8s资源配置清单
6.应用资源配置清单

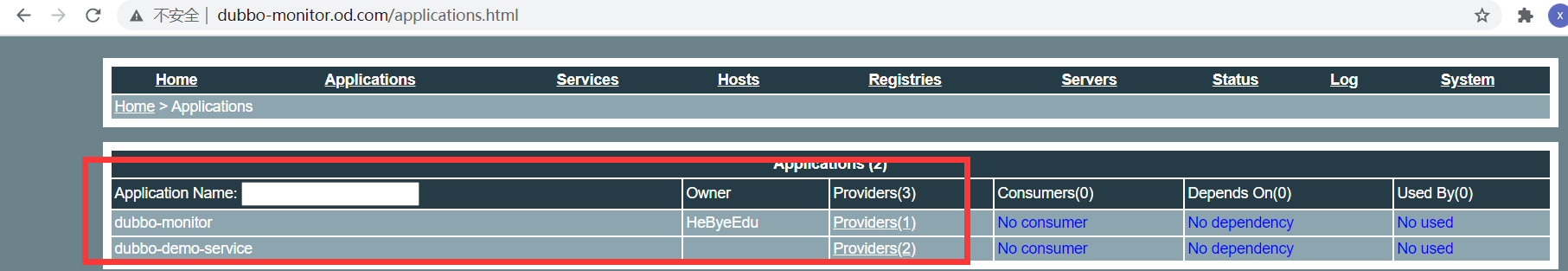

7.浏览器访问
3.构建dubbo-consumer服务
1.配置流水线

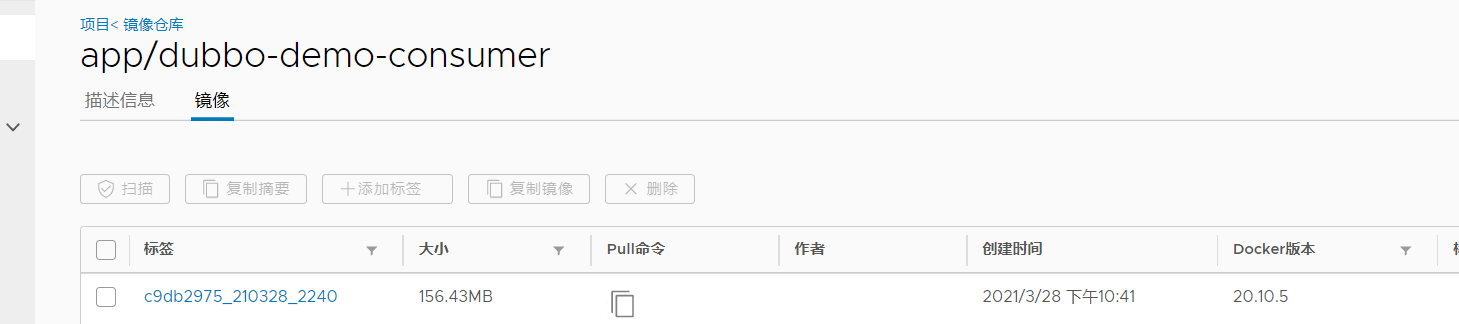

2.检查harbor仓库内镜像
3.解析域名
4.准备K8S的资源配置清单
5.应用资源配置清单

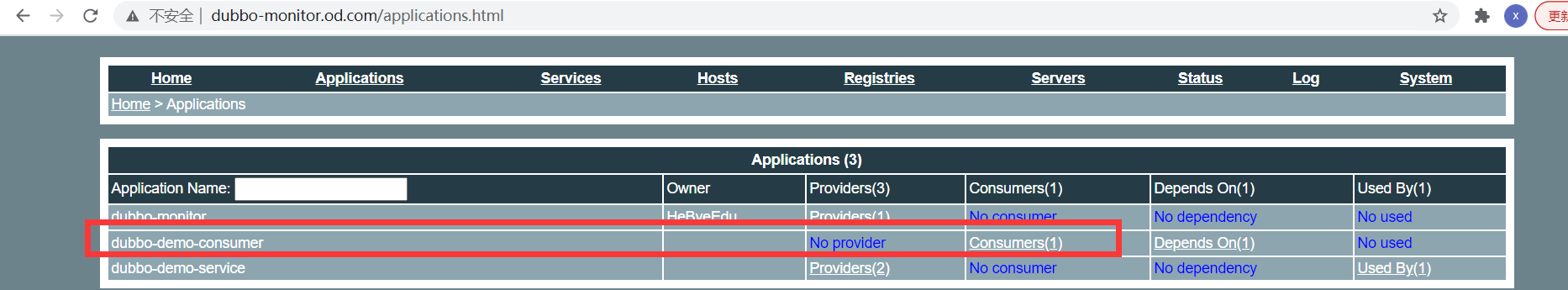

6.检查docker运行情况及dubbo-monitor
7.浏览器访问
第八章：实战维护dubbo微服务集群
这时访问业务会有短暂的Bad Gateway

第一章：Dubbo微服务概述

Dubbo是什么？
- Dubbo是阿里巴巴SOA服务化治理方案的核心框架，每天为2000+个服务提供300000000+次访问量支持，被广泛应用于阿里巴巴集团的各成员站点。
- Dubbo是一个分布式服务框架，致力于提供高性能和透明化的RPC远程服务调用方案，以及SOA服务治理方案。
- 简单地说，dubbo就是个服务框架，如果没有分布式的需求，其实是不需要的，只有在分布式的时候，才有dubbo这样的分布式服务框架的需求，并且本质上就是服务调用，说白了就是个远程服务调用的分布式框架。
Dubbo能做什么？
- 透明化的远程方法调用，就像调用本地方法一样调用远程方法，只需简单配置，没有任何API侵入。
- 软负载均衡及容错机制，可在内网替代F5等硬件负载均衡器，降低成本，减少单点。
- 服务自动注册与发行，不需要写死服务提供方地址，注册中心基于接口查询服务提供者的IP地址，并且能够平滑添加和删除服务提供者。

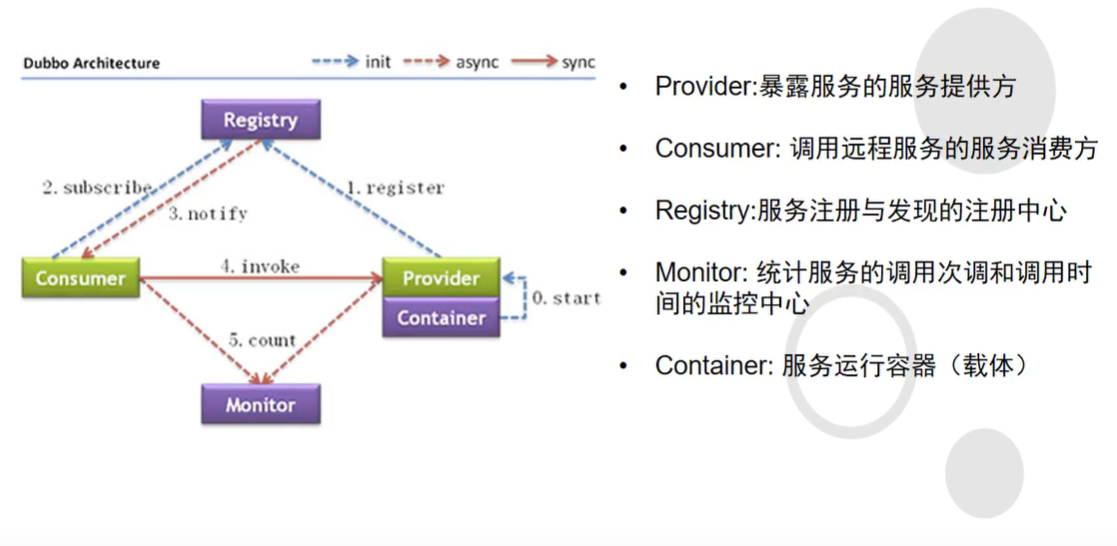

Dubbo框架

第二章：实验架构详解

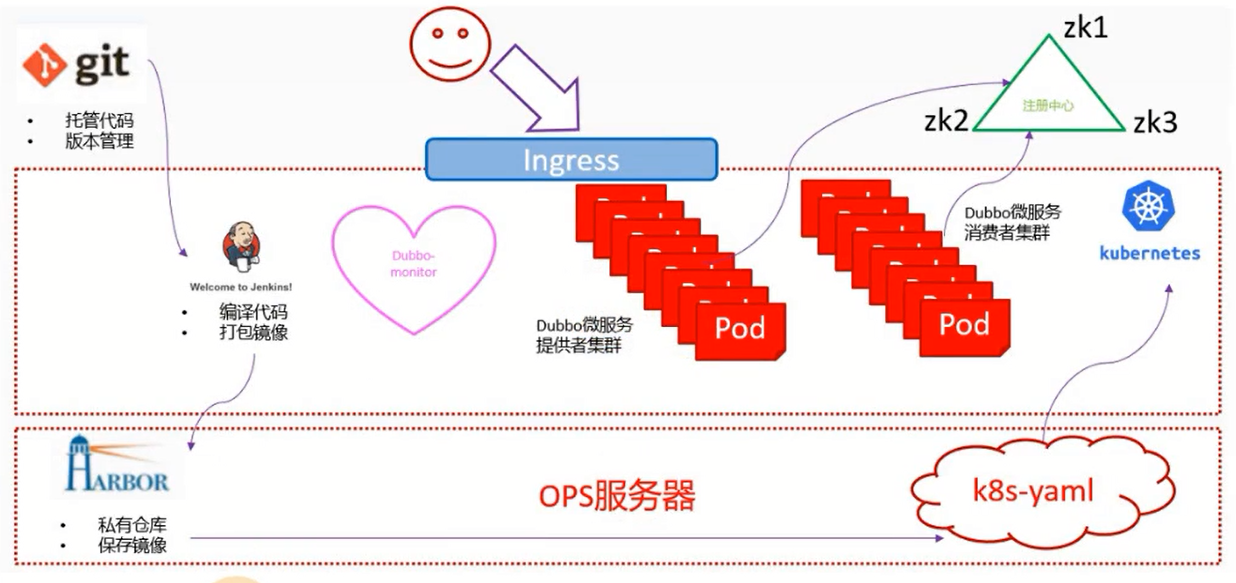

1.架构图解：

1.最上面一排为K8S集群外服务

代码仓库使用基于git的gitee
注册中心使用3台zk组成集群
用户通过ingress暴露出去的服务进行访问

2.中间层是K8S集群内服务

jenkins以容器方式运行，数据目录通过共享磁盘做持久化
整套dubbo微服务都以POD方式交付，通过zk集群通信
需要提供的外部访问的服务通过ingress方式暴露

3.最下层是运维主机层

harbor是docker私有仓库，存放docker镜像
POD相关yaml文件创建在运维主机特定目录
在K8S集群内通过nginx提供的下载链接应用yaml配置

2.交付说明

docker虽然可以部署有状态服务，但如果不是有特别需要，还是建议不要部署有状态服务。
k8s同理，也不建议部署有状态服务，如mysql,zk等。
因此手动将zookeeper创建集群提供给dubbo使用。

第三章：部署zookeeper集群

Zookeeper是Dubbo微服务集群的注册中心。
它的高可用机制和K8S的etcd集群一致。
由java编写，所以需要jdk环境

1.集群规划

主机名	角色	ip
HDSS7-11.host.com	k8s代理节点1，zk1	10.4.7.11
HDSS7-12.host.com	k8s代理节点2，zk2	10.4.7.12
HDSS7-21.host.com	k8s运算节点1，zk3	10.4.7.21
HDSS7-22.host.com	k8s运算节点2，jenkins	10.4.7.22
HDSS7-200.host.com	k8s运维节点(docker仓库)	10.4.7.200

2.安装jdk1.8（3台zk角色主机）

JDK_ALL下载地址

[root@hdss7-11 ~]# mkdir /opt/src
[root@hdss7-11 ~]# mkdir /usr/java
[root@hdss7-11 ~]# cd /opt/src/
[root@hdss7-11 src]# tar xf jdk-8u221-linux-x64.tar.gz -C /usr/java/
[root@hdss7-11 src]# ln -s /usr/java/jdk1.8.0_221/ /usr/java/jdk
[root@hdss7-11 src]# vim /etc/profile
export JAVA_HOME=/usr/java/jdk
export PATH=$JAVA_HOME/bin:$JAVA_HOME/bin:$PATH
export CLASSPATH=$CLASSPATH:$JAVA_HOME/lib:$JAVA_HOME/lib/tools.jar

[root@hdss7-11 src]# source  /etc/profile
[root@hdss7-11 src]#
[root@hdss7-11 src]#
[root@hdss7-11 src]# java -version
java version "1.8.0_221"
Java(TM) SE Runtime Environment (build 1.8.0_221-b11)
Java HotSpot(TM) 64-Bit Server VM (build 25.221-b11, mixed mode)
[root@hdss7-11 src]#

3.安装zookeeper（3台zk角色主机）

zk下载
 zookeeper

1.解压软件包

[root@hdss7-11 src]# wget http://archive.apache.org/dist/zookeeper/zookeeper-3.4.14/zookeeper-3.4.14.tar.gz
[root@hdss7-11 src]# tar xf zookeeper-3.4.14.tar.gz  -C /opt/
[root@hdss7-11 src]# ln -s /opt/zookeeper-3.4.14/ /opt/zookeeper
[root@hdss7-11 src]# mkdir -pv /data/zookeeper/data /data/zookeeper/logs
mkdir: created directory ‘/data’
mkdir: created directory ‘/data/zookeeper’
mkdir: created directory ‘/data/zookeeper/data’
mkdir: created directory ‘/data/zookeeper/logs’

[root@hdss7-11 src]# vim /opt/zookeeper/conf/zoo.cfg
tickTime=2000
initLimit=10
syncLimit=5
dataDir=/data/zookeeper/data
dataLogDir=/data/zookeeper/logs
clientPort=2181
server.1=zk1.od.com:2888:3888
server.2=zk2.od.com:2888:3888
server.3=zk3.od.com:2888:3888

注意：各节点zk配置相同

2.配置myid

HDSS7-11.host.com上：

[root@hdss7-11 src]# echo "1" > /data/zookeeper/data/myid

HDSS7-12.host.com上：

[root@hdss7-12 src]# echo "2" > /data/zookeeper/data/myid

HDSS7-21.host.com上：

[root@hdss7-21 src]# echo "3" > /data/zookeeper/data/myid

3.DNS解析

HDSS7-11.host.com上

[root@hdss7-11 ~]# vim /var/named/od.com.zone
$ORIGIN od.com.
$TTL 600    ; 10 minutes
@           IN SOA    dns.od.com. dnsadmin.od.com. (
                2021031906 ; serial
                10800      ; refresh (3 hours)
                900        ; retry (15 minutes)
                604800     ; expire (1 week)
                86400      ; minimum (1 day)
                )
                NS   dns.od.com.
$TTL 60    ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200
k8s-yaml           A    10.4.7.200
traefik            A    10.4.7.10
dashboard          A    10.4.7.10
zk1                A    10.4.7.11
zk2                A    10.4.7.12
zk3                A    10.4.7.21
[root@hdss7-11 ~]# named-checkconf
[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]#
[root@hdss7-11 ~]#
[root@hdss7-11 ~]# dig -t A zk2.od.com @10.4.7.11 +short
10.4.7.12
[root@hdss7-11 ~]# dig -t A zk1.od.com @10.4.7.11 +short
10.4.7.11
[root@hdss7-11 ~]# dig -t A zk3.od.com @10.4.7.11 +short
10.4.7.21
[root@hdss7-11 ~]#

4.依次启动

[root@hdss7-11 ~]# /opt/zookeeper/bin/zkServer.sh start
[root@hdss7-12 ~]# /opt/zookeeper/bin/zkServer.sh start
[root@hdss7-21 ~]# /opt/zookeeper/bin/zkServer.sh start

5.检查

[root@hdss7-11 ~]# netstat  -lntup|grep 2181
tcp6       0      0 :::2181                 :::*                    LISTEN      70129/java
[root@hdss7-11 ~]#
[root@hdss7-11 ~]# /opt/zookeeper/bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/bin/../conf/zoo.cfg
Mode: follower
[root@hdss7-11 ~]#
[root@hdss7-12 ~]# /opt/zookeeper/bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/bin/../conf/zoo.cfg
Mode: leader
[root@hdss7-12 ~]#
[root@hdss7-21 ~]# /opt/zookeeper/bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /opt/zookeeper/bin/../conf/zoo.cfg
Mode: follower
[root@hdss7-21 ~]#

第四章：部署Jenkins

1.准备镜像

jenkins官网
 jenkins镜像

在运维主机下载官网上的稳定版（这里下载2.277.1），如果此版本有问题，可以用最新的版本，默认不支持关闭CSRF，所以需要在jenkins 控制台中手动关闭CSRF。

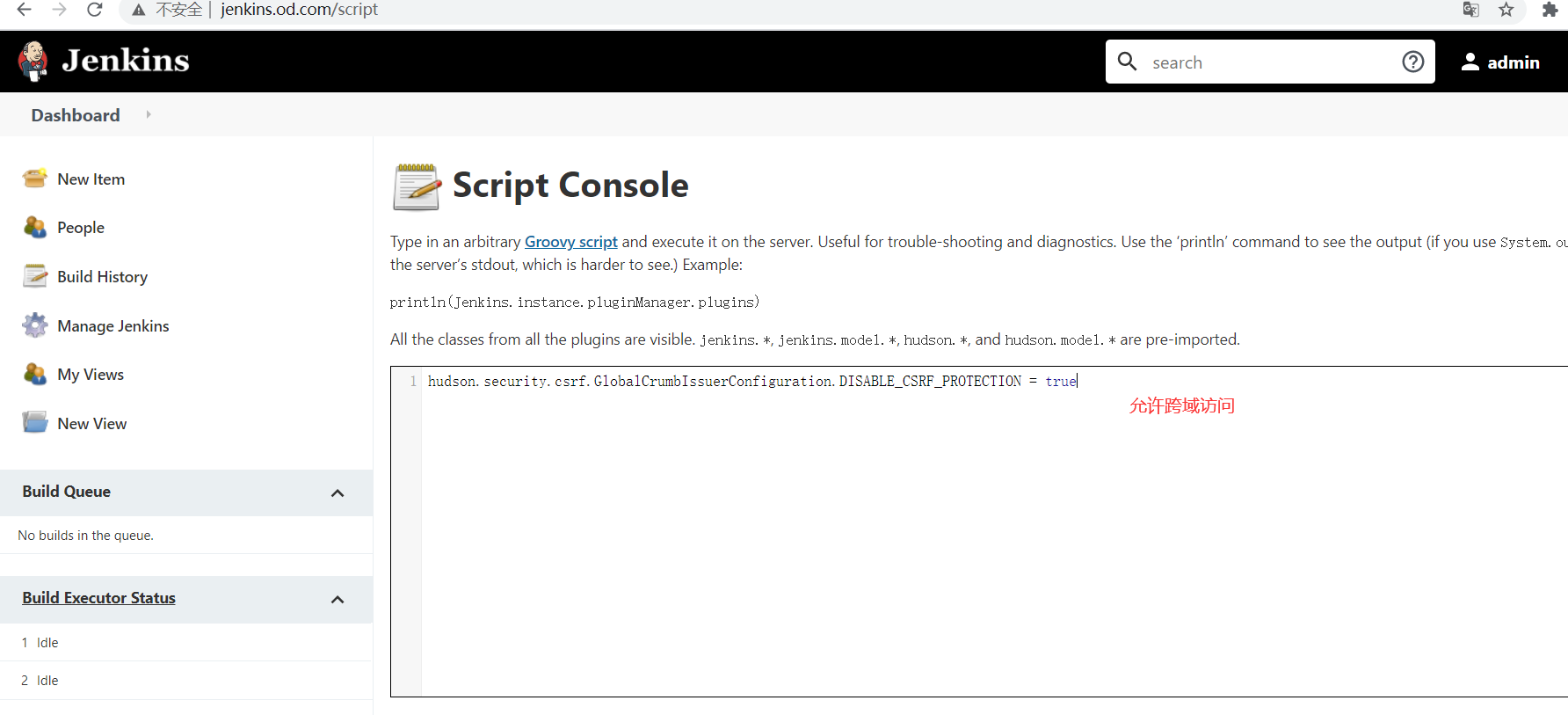

解决方案为在jenkins控制台中执行以下代码。
// 允许禁用
// Script Console
hudson.security.csrf.GlobalCrumbIssuerConfiguration.DISABLE_CSRF_PROTECTION = true
[root@hdss7-200 ~]# docker pull jenkins/jenkins:2.277.1
[root@hdss7-200 ~]# docker images |grep jenkins
jenkins/jenkins                    2.277.1                    a470e85971b2   2 weeks ago     570MB
[root@hdss7-200 ~]# docker tag a470e85971b2  harbor.od.com/public/jenkins:v2.277.1
[root@hdss7-200 ~]# docker push harbor.od.com/public/jenkins:v2.277.1

2.自定义Dockerfile

在运维主机HDSS7-200.host.com上编辑自定义dockerfile

[root@hdss7-200 ~]#  mkdir -p  /data/dockerfile/jenkins/
[root@hdss7-200 ~]# vim /data/dockerfile/jenkins/Dockerfile
[root@hdss7-200 ~]# cat /data/dockerfile/jenkins/Dockerfile
FROM harbor.od.com/public/jenkins:v2.277.1
USER root
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&\
    echo 'Asia/Shanghai' >/etc/timezone
ADD id_rsa /root/.ssh/id_rsa
ADD config.json /root/.docker/config.json
ADD get-docker.sh /get-docker.sh
RUN echo "    StrictHostKeyChecking no" >> /etc/ssh/ssh_config &&\
   /get-docker.sh --mirror Aliyun
[root@hdss7-200 ~]#

这个Dockerfile里我们主要做了以下几件事

设置容器用户为root
设置容器内的时区
将ssh私钥加入(使用git拉取代码时要用到，配置的公钥应配置在gitlab中)
加入了登录自建harbor仓库的config文件
修改了ssh客户端的配置
安装了一个docker的客户端
1.生成ssh秘钥对：

[root@hdss7-200 ~]# ssh-keygen  -t rsa -b 2048 -C "xtyang@hebye.com" -N "" -f /root/.ssh/id_rsa
#查看生成文件
[root@hdss7-200 ~]# ll /root/.ssh/
total 8
-rw------- 1 root root 1675 Mar 26 11:24 id_rsa
-rw-r--r-- 1 root root  398 Mar 26 11:24 id_rsa.pub
[root@hdss7-200 ~]#
#查看生成的公钥
[root@hdss7-200 ~]# cat /root/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCV4BRT1eJSDJnZvCGVrcs8SLdkVfNabhkK5GtvQKxSOgl3bF763MnlJ9WhmD0Fkd26C8xKCaCE6IH1iDYJlANVCdNu1vDVcg17CiarLex9ljv6/m5p8LMFLWnUt+50AqBTZjbHn24HtE+0Qf11Jb2QRDlDvb3DAqlahsO9FnpI+Q7JZdbzUrynwZlF2bFpYMY14Hg2ceUOV1iRQvjfsH44d224wKTE3DBAaI6Tn2T++DUtvqzxenlZwGpoM0w8ipGjzNdzmkuVYKIRF/LNvI5VmYyoCqR/xQr+EOpThGbz+MnTN6JtJelnyWgYfyDH+ifmZBVi1dlZZTxpFwZwtBQR xtyang@hebye.com
[root@hdss7-200 ~]#

2.拷贝文件：

[root@hdss7-200 ~]# cp /root/.ssh/id_rsa /data/dockerfile/jenkins/
[root@hdss7-200 ~]# cp /root/.docker/config.json  /data/dockerfile/jenkins/
[root@hdss7-200 ~]# cd /data/dockerfile/jenkins/ && curl -fsSL get.docker.com -o get-docker.sh && chmod +x get-docker.sh

3.查看docker harbor config

[root@hdss7-200 jenkins]# cat /root/.docker/config.json
{
    "auths": {
        "harbor.od.com": {
            "auth": "YWRtaW46SGFyYm9yMTIzNDU="
        }
    }
}[root@hdss7-200 jenkins]#

4.检查文件

[root@hdss7-200 jenkins]# pwd
/data/dockerfile/jenkins
[root@hdss7-200 jenkins]# ls
config.json  Dockerfile  get-docker.sh  id_rsa
[root@hdss7-200 jenkins]#

3.制作自定义镜像

[root@hdss7-200 jenkins]# docker build . -t harbor.od.com/infra/jenkins:v2.277.1
Sending build context to Docker daemon  20.48kB
Step 1/7 : FROM harbor.od.com/public/jenkins:v2.277.1
 ---> a470e85971b2
Step 2/7 : USER root
 ---> Using cache
 ---> bb9835038486
Step 3/7 : RUN /bin/cp usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&    echo 'Asia/Shanghai' >/etc/timezone
 ---> Using cache
 ---> 8af6a00c00fd
Step 4/7 : ADD id_rsa /root/.ssh/id_rsa
 ---> 83ac948a6e95
Step 5/7 : ADD config.json /root/.docker/config.json
 ---> 505df9e8c257
Step 6/7 : ADD get-docker.sh /get-docker.sh
 ---> 71224cfa4bed
Step 7/7 : RUN echo "    StrictHostKeyChecking no" >> /etc/ssh/ssh_config &&   /get-docker.sh --mirror Aliyun
 ---> Running in db556ea0096f
# Executing docker install script, commit: 3d8fe77c2c46c5b7571f94b42793905e5b3e42e4
+ sh -c apt-get update -qq >/dev/null
+ sh -c DEBIAN_FRONTEND=noninteractive apt-get install -y -qq apt-transport-https ca-certificates curl >/dev/null
+ sh -c curl -fsSL "https://mirrors.aliyun.com/docker-ce/linux/debian/gpg" | apt-key add -qq - >/dev/null
Warning: apt-key output should not be parsed (stdout is not a terminal)
+ sh -c echo "deb [arch=amd64] https://mirrors.aliyun.com/docker-ce/linux/debian buster stable" > /etc/apt/sources.list.d/docker.list
+ sh -c apt-get update -qq >/dev/null
+ [ -n  ]
+ sh -c apt-get install -y -qq --no-install-recommends docker-ce >/dev/null
debconf: delaying package configuration, since apt-utils is not installed
If you would like to use Docker as a non-root user, you should now consider
adding your user to the "docker" group with something like:

  sudo usermod -aG docker your-user

Remember that you will have to log out and back in for this to take effect!

WARNING: Adding a user to the "docker" group will grant the ability to run
         containers which can be used to obtain root privileges on the
         docker host.
         Refer to https://docs.docker.com/engine/security/security/#docker-daemon-attack-surface
         for more information.
Removing intermediate container db556ea0096f
 ---> b5b80b38192e
Successfully built b5b80b38192e
Successfully tagged harbor.od.com/infra/jenkins:v2.277.1
[root@hdss7-200 jenkins]#

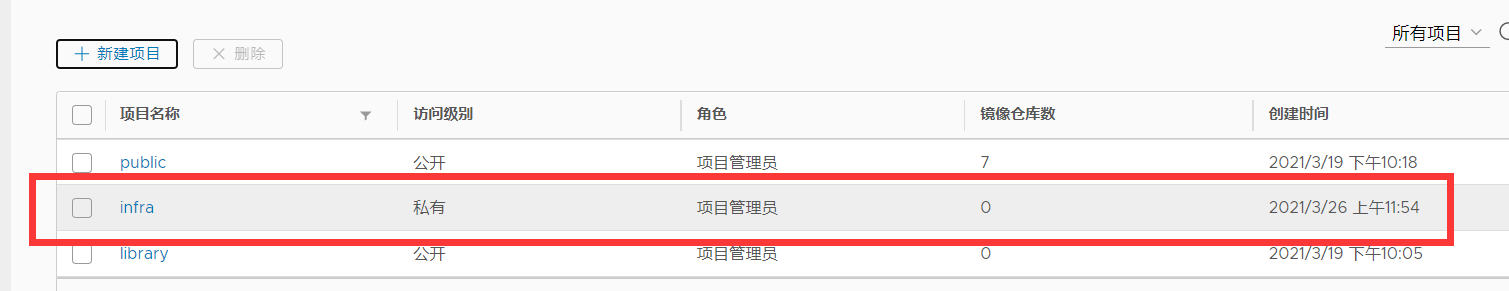

4.创建infra仓库

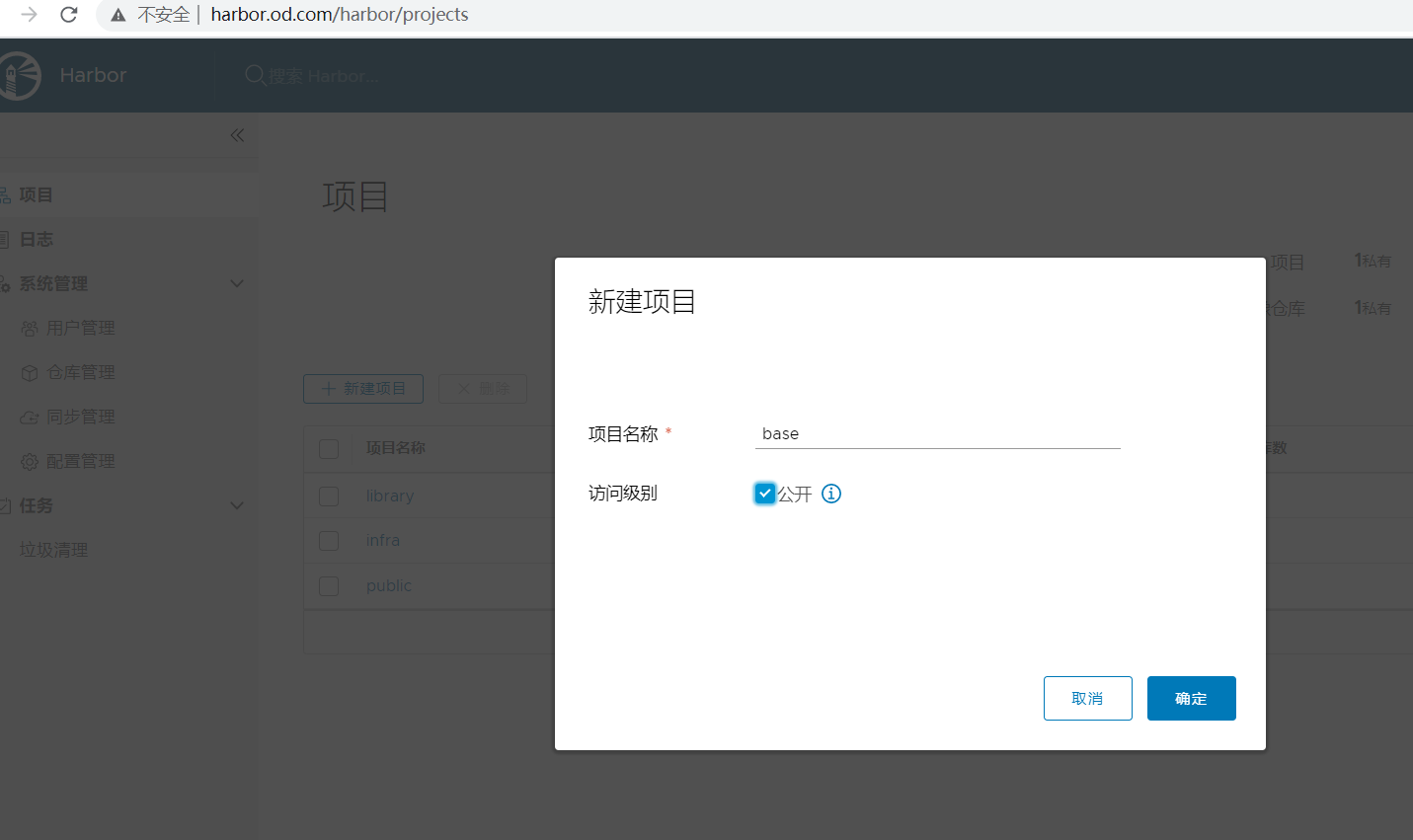

在Harbor页面，创建infra仓库，注意：私有仓库

5.推送镜像到harbor

[root@hdss7-200 jenkins]# docker push harbor.od.com/infra/jenkins:v2.277.1

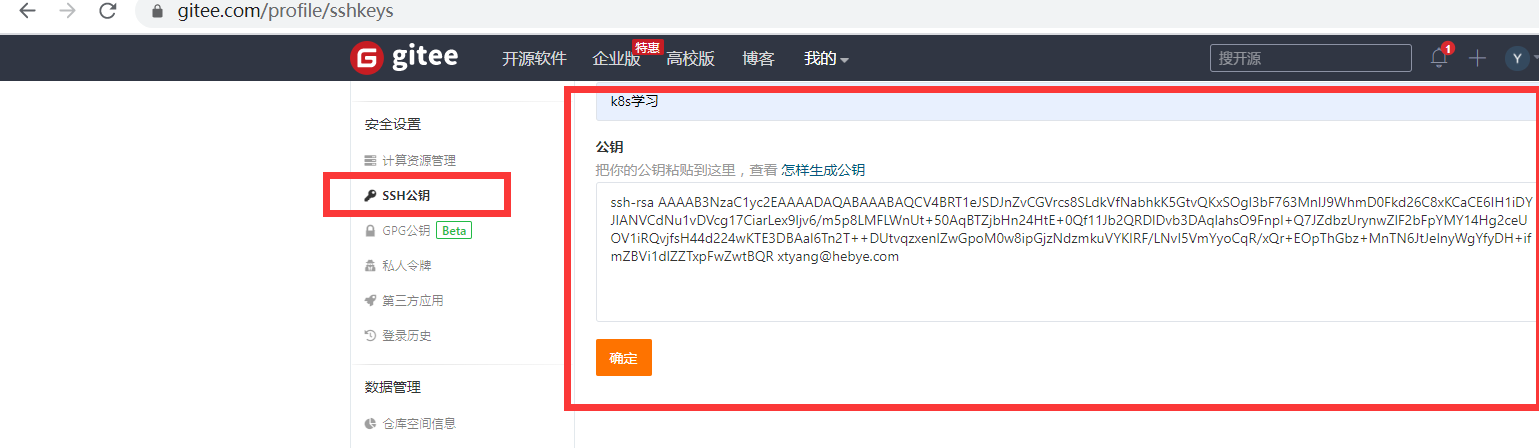

- 登录gitee.com，然后 添加公钥钥，使得jenkins能够拉去gitee的代码，测试jenkins镜像

[root@hdss7-200 jenkins]# docker run --rm harbor.od.com/infra/jenkins:v2.277.1 ssh -i /root/.ssh/id_rsa  -T git@gitee.com
Warning: Permanently added 'gitee.com,212.64.62.183' (ECDSA) to the list of known hosts.
Hi Yodo1! You've successfully authenticated, but GITEE.COM does not provide shell access.
[root@hdss7-200 jenkins]#

6.创建kubernetes命名空间，私有仓库鉴权

在任意运算节点上：

[root@hdss7-21 ~]# kubectl create ns infra
namespace/infra created
[root@hdss7-21 ~]# kubectl create secret docker-registry harbor --docker-server=harbor.od.com --docker-username=admin --docker-password=Harbor12345 -n infra
secret/harbor created
[root@hdss7-21 ~]#

7.准备共享存储

运维主机，以及所有运算节点上：

[root@hdss7-21 ~]# yum install nfs-utils -y
[root@hdss7-22 ~]# yum install nfs-utils -y
[root@hdss7-200 ~]# yum install nfs-utils -y

配置NFS服务
运维主机HDSS7-200.host.com上：

[root@hdss7-200 ~]# cat /etc/exports
/data/nfs-volume 10.4.7.0/24(rw,no_root_squash)
[root@hdss7-200 ~]# mkdir -p /data/nfs-volume/jenkins_home
[root@hdss7-200 ~]#

启动NFS服务

[root@hdss7-200 ~]# systemctl start nfs
[root@hdss7-200 ~]# systemctl enable nfs

8.准备资源配置清单

运维主机HDSS7-200.host.com上：

[root@hdss7-200 ~]# mkdir /data/k8s-yaml/jenkins
[root@hdss7-200 ~]# cd  /data/k8s-yaml/jenkins
[root@hdss7-200 jenkins]# vim dp.yaml
[root@hdss7-200 jenkins]# cat dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: jenkins
  namespace: infra
  labels:
    name: jenkins
spec:
  replicas: 1
  selector:
    matchLabels:
      name: jenkins
  template:
    metadata:
      labels:
        app: jenkins
        name: jenkins
    spec:
      volumes:
      - name: data
        nfs:
          server: hdss7-200
          path: /data/nfs-volume/jenkins_home
      - name: docker
        hostPath:
          path: /run/docker.sock
          type: ''
      containers:
      - name: jenkins
        image: harbor.od.com/infra/jenkins:v2.277.1
        ports:
        - containerPort: 8080
          protocol: TCP
        env:
        - name: JAVA_OPTS
          value: -Xmx512m -Xms512m
        resources:
          limits:
            cpu: 500m
            memory: 1Gi
          requests:
            cpu: 500m
            memory: 1Gi
        volumeMounts:
        - name: data
          mountPath: /var/jenkins_home
        - name: docker
          mountPath: /run/docker.sock
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600
[root@hdss7-200 jenkins]#

[root@hdss7-200 jenkins]# cat svc.yaml
kind: Service
apiVersion: v1
metadata:
  name: jenkins
  namespace: infra
spec:
  ports:
  - protocol: TCP
    port: 80
    targetPort: 8080
  selector:
    app: jenkins
[root@hdss7-200 jenkins]#

[root@hdss7-200 jenkins]# cat ingress.yaml
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: jenkins
  namespace: infra
spec:
  rules:
  - host: jenkins.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: jenkins
          servicePort: 80
[root@hdss7-200 jenkins]#

9.应用资源配置清单

在任意运算节点上运行

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/jenkins/dp.yaml
deployment.extensions/jenkins created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/jenkins/svc.yaml
service/jenkins created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/jenkins/ingress.yaml
ingress.extensions/jenkins created
[root@hdss7-21 ~]#

检查

[root@hdss7-21 ~]# kubectl get all -n infra
NAME                          READY   STATUS    RESTARTS   AGE
pod/jenkins-b69779cdc-mhgzj   1/1     Running   0          3m7s


NAME              TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)   AGE
service/jenkins   ClusterIP   192.168.101.119   <none>        80/TCP    3m4s


NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/jenkins   1/1     1            1           3m7s

NAME                                DESIRED   CURRENT   READY   AGE
replicaset.apps/jenkins-b69779cdc   1         1         1       3m7s
[root@hdss7-21 ~]# kubectl get pods -n infra
NAME                      READY   STATUS    RESTARTS   AGE
jenkins-b69779cdc-mhgzj   1/1     Running   0          3m42s
[root@hdss7-21 ~]# kubectl get svc -n infra
NAME      TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)   AGE
jenkins   ClusterIP   192.168.101.119   <none>        80/TCP    3m46s
[root@hdss7-21 ~]# kubectl get ingress -n infra
NAME      HOSTS            ADDRESS   PORTS   AGE
jenkins   jenkins.od.com             80      3m50s
[root@hdss7-21 ~]#

10.域名解析

HDSS7-11.host.com上

[root@hdss7-11 ~]# tail -1 /var/named/od.com.zone
jenkins            A    10.4.7.10
[root@hdss7-11 ~]# named-checkconf
[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]# dig -t A jenkins.od.com @10.4.7.11 +short
10.4.7.10
[root@hdss7-11 ~]#

11.配置jenkins加速

[root@hdss7-200 ~]# cd /data/nfs-volume/jenkins_home/updates/
 [root@hdss7-200 ~]# sed -i 's/http:\/\/updates.jenkins-ci.org\/download/https:\/\/mirrors.tuna.tsinghua.edu.cn\/jenkins/g' default.json && sed -i 's/http:\/\/www.google.com/https:\/\/www.baidu.com/g' default.json

12.浏览器访问

浏览器访问 http://jenkins.od.com/

13.域名配置jenkins

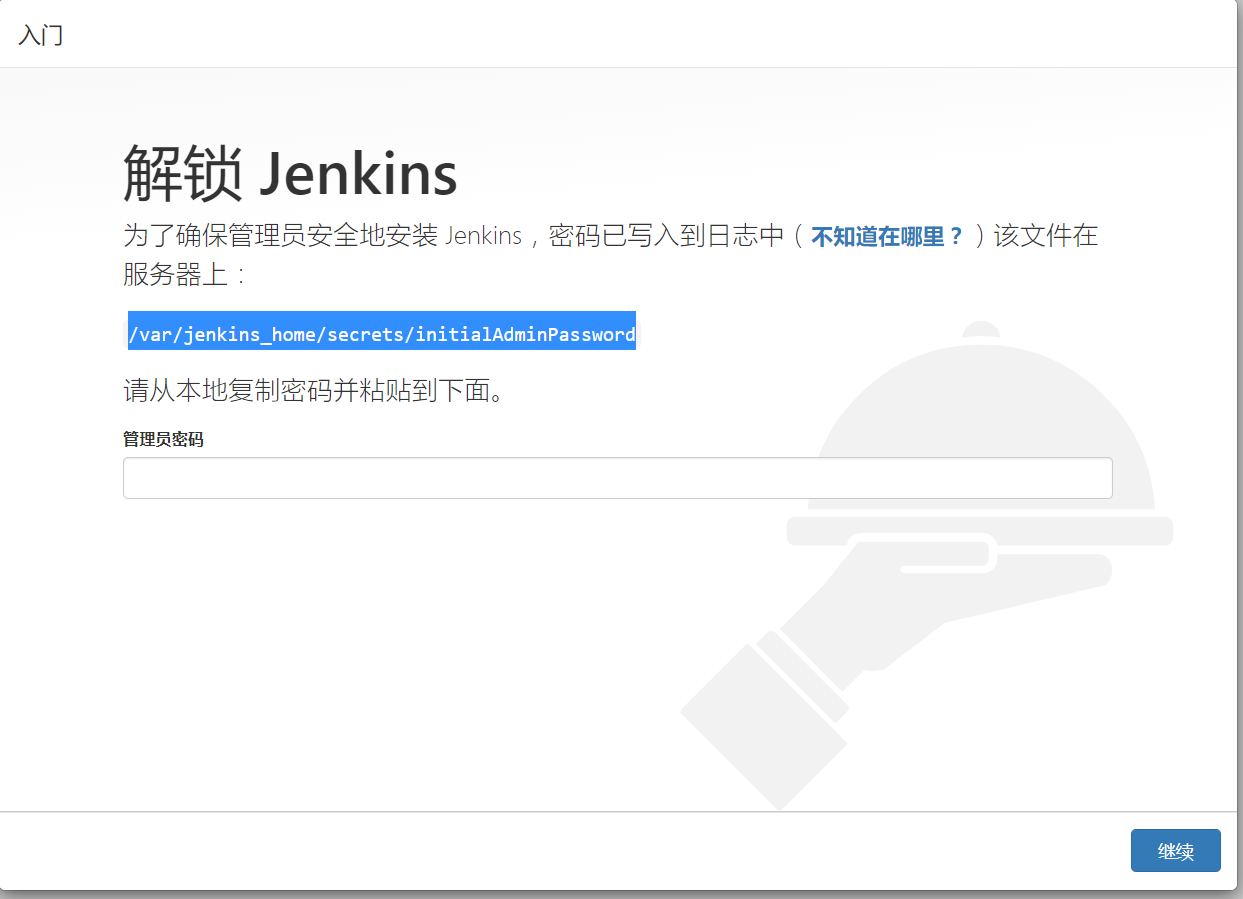

1.初始化密码

[root@hdss7-21 ~]# kubectl get pods -n infra
NAME                      READY   STATUS    RESTARTS   AGE
jenkins-b69779cdc-mhgzj   1/1     Running   0          28m
[root@hdss7-21 ~]# kubectl exec jenkins-b69779cdc-mhgzj  /bin/cat /var/jenkins_home/secrets/initialAdminPassword -n infra
4a55ea5ad1684285b6b435e57de6bb03

[root@hdss7-200 ~]# cat /data/nfs-volume/jenkins_home/secrets/initialAdminPassword
4a55ea5ad1684285b6b435e57de6bb03
[root@hdss7-200 ~]#

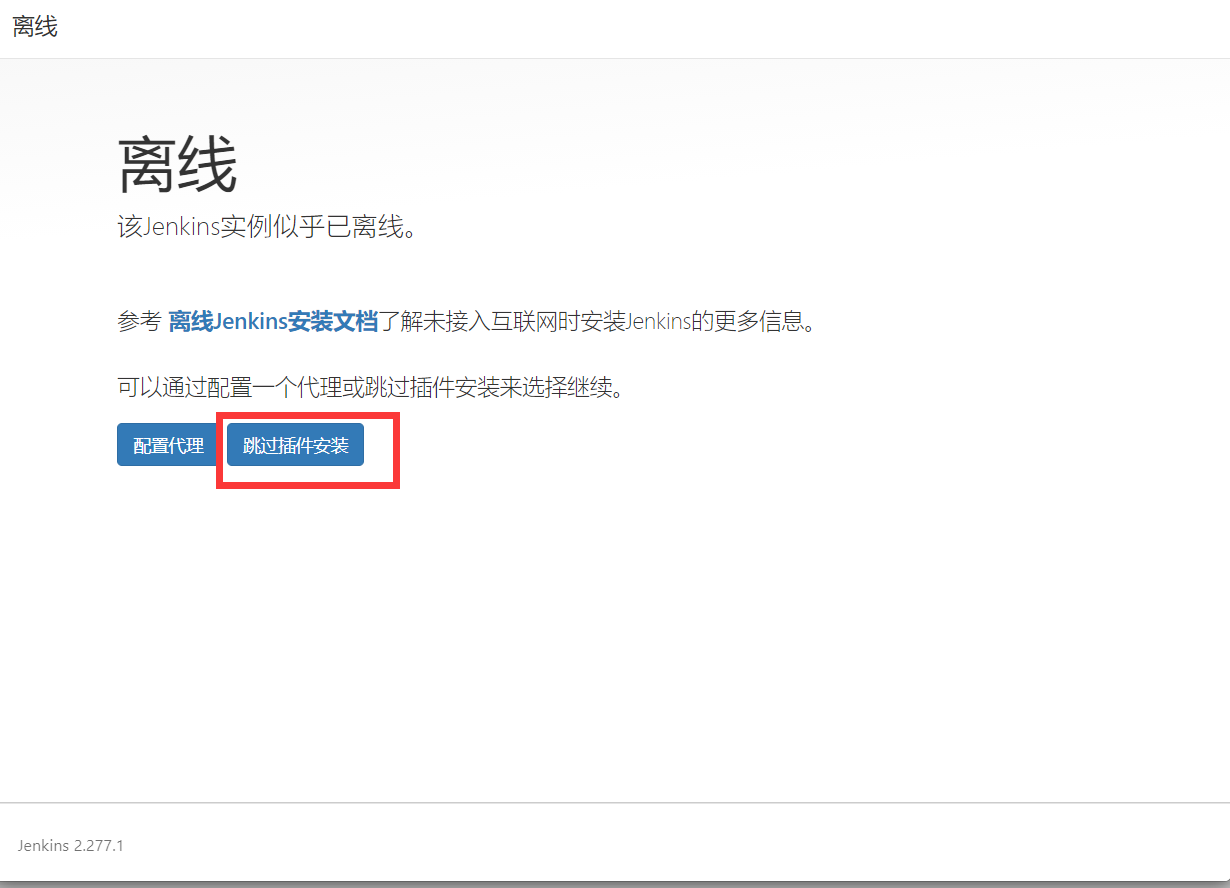

2.跳过安装插件

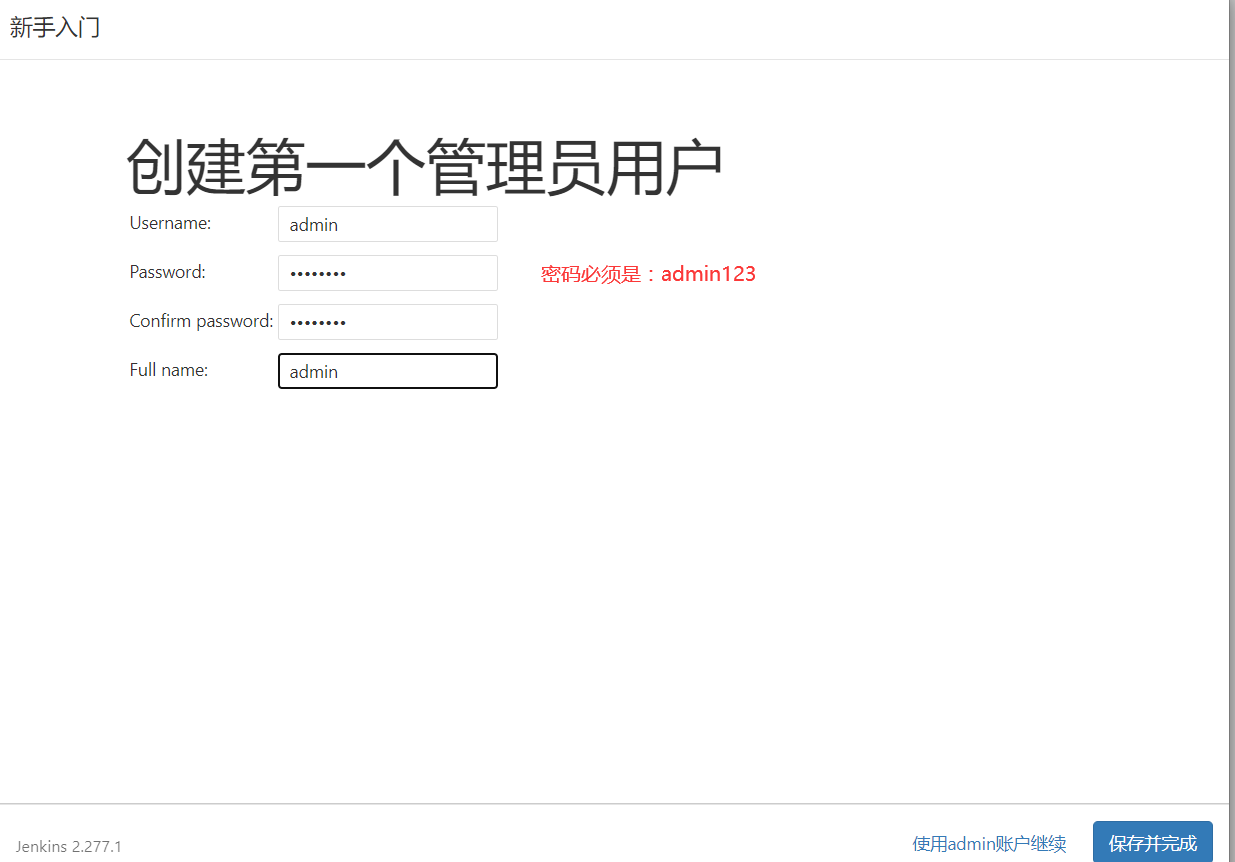

3.创建管理员用户

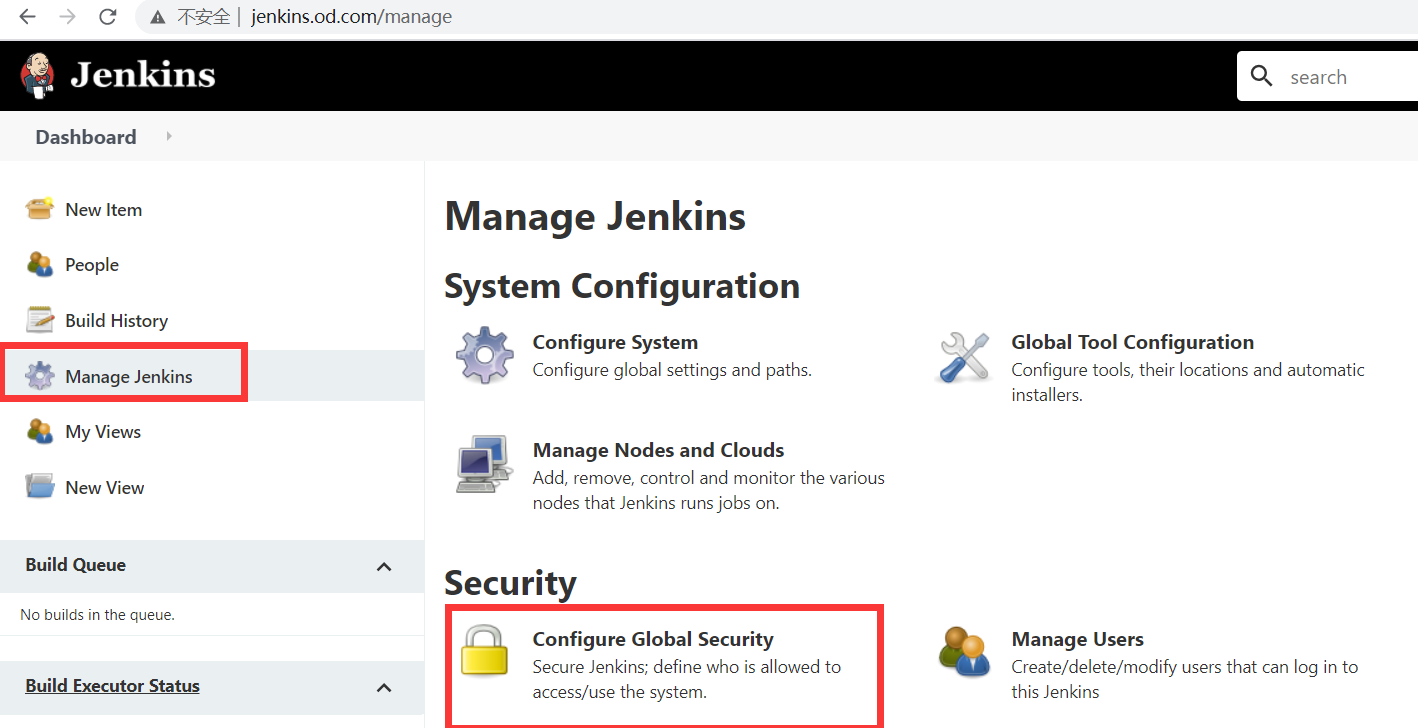

4.调整安全选项

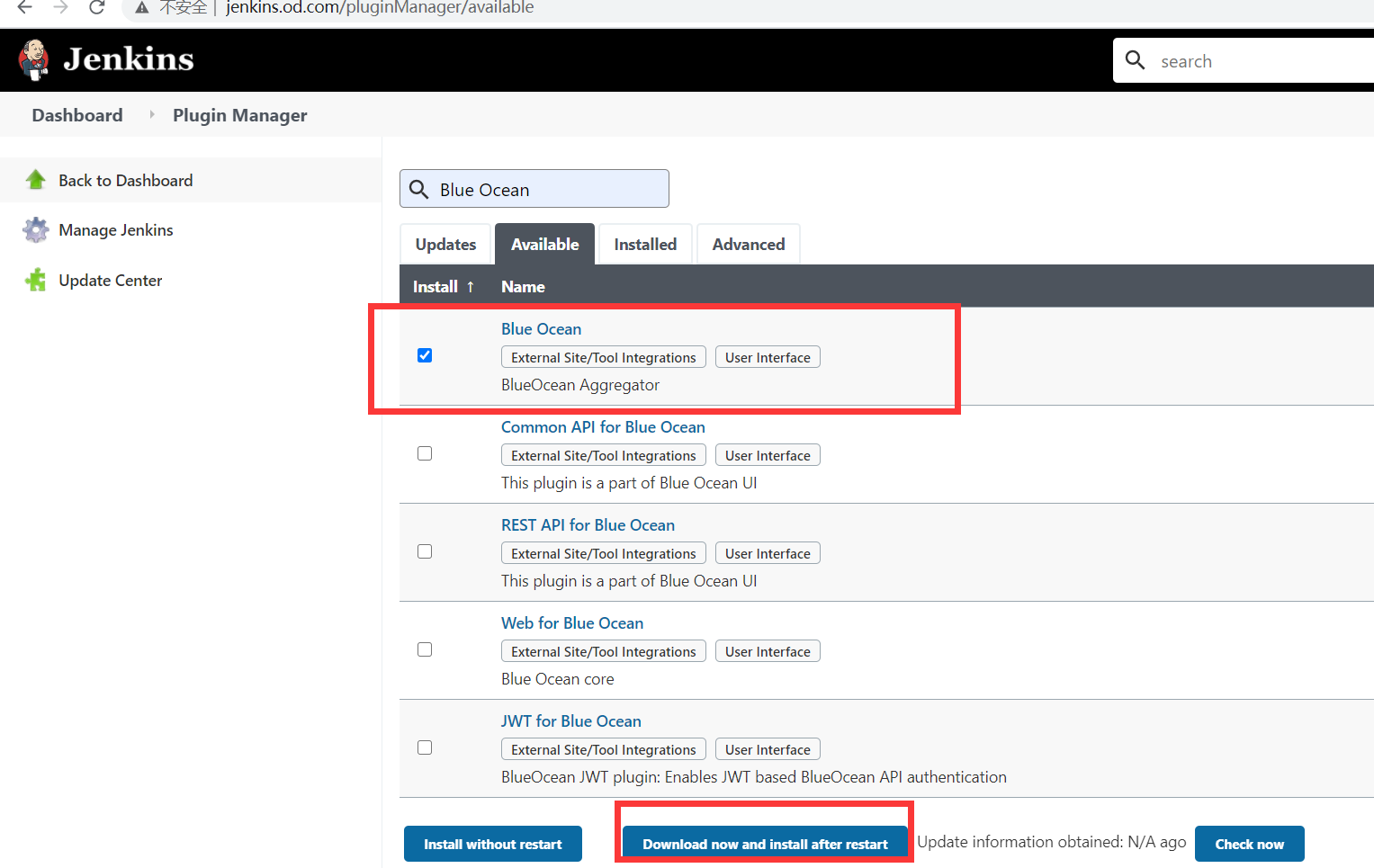

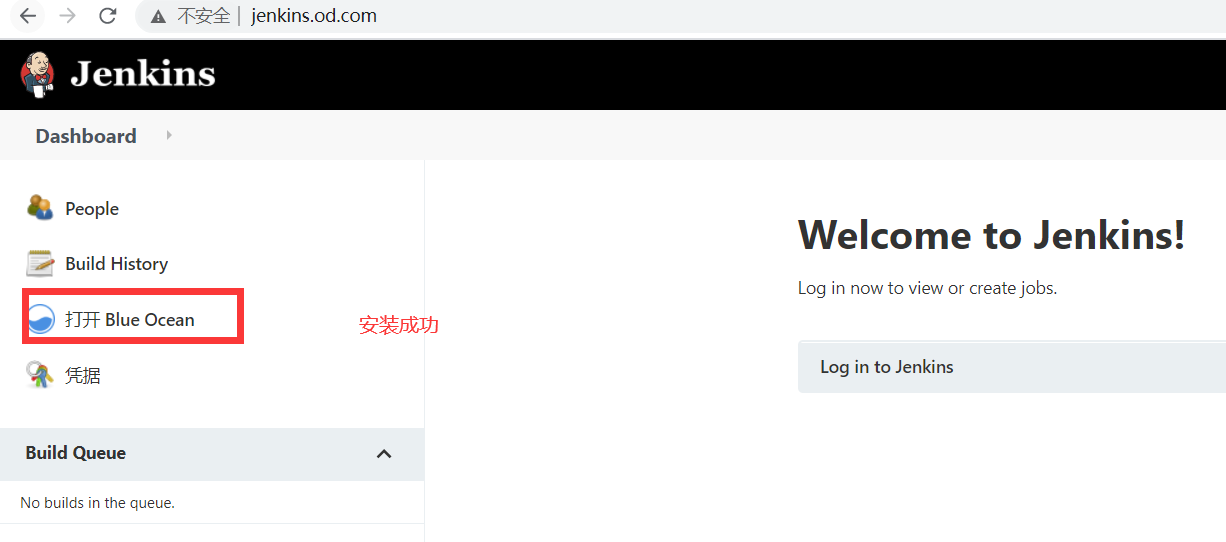

5.安装Blue Ocean插件

Manage Jenkins
Manage Plugins
Available

Blue Ocean

6.最后的检验工作

1.检查jenkins容器里的docker客户端

进入jenkins容器里，检查dockerk客户端是否可用

[root@hdss7-22 ~]# kubectl get pods -n infra -o wide
NAME                      READY   STATUS    RESTARTS   AGE   IP           NODE                NOMINATED NODE   READINESS GATES
jenkins-b69779cdc-mhgzj   1/1     Running   0          73m   172.7.21.8   hdss7-21.host.com   <none>           <none>
[root@hdss7-22 ~]# kubectl  exec -it jenkins-b69779cdc-mhgzj /bin/bash -n infra
root@jenkins-b69779cdc-mhgzj:/# docker ps -a
CONTAINER ID   IMAGE                               COMMAND                  CREATED             STATUS             PORTS                NAMES
db1ca6f4e736   b5b80b38192e                        "/sbin/tini -- /usr/…"   About an hour ago   Up About an hour                        k8s_jenkins_jenkins-b69779cdc-mhgzj_infra_2ec2f1b8-4a46-45b8-973b-e876ea0992b3_0
bcff03d042ee   harbor.od.com/public/pause:latest   "/pause"                 About an hour ago   Up About an hour                        k8s_POD_jenkins-b69779cdc-mhgzj_infra_2ec2f1b8-4a46-45b8-973b-e876ea0992b3_0
4e17a3ce4645   harbor.od.com/public/nginx          "nginx -g 'daemon of…"   20 hours ago        Up 20 hours                             k8s_nginx_nginx-dp-5dfc689474-fwqtr_kube-public_3678c27f-a086-448a-8ff5-fef77bb9688c_0
369bc42adcca   harbor.od.com/public/heapster       "/opt/bitnami/heapst…"   20 hours ago        Up 20 hours                             k8s_heapster_heapster-b5b9f794-79qb2_kube-system_192ad1b3-644e-4885-a3f6-0949847a025f_0
1464f974d0a0   harbor.od.com/public/coredns        "/coredns -conf /etc…"   20 hours ago        Up 20 hours                             k8s_coredns_coredns-6b6c4f9648-jhtpx_kube-system_c0ed1d19-03b5-4eaa-9549-675e80778357_0
c9d61f208976   fcac9aa03fd6                        "/dashboard --insecu…"   20 hours ago        Up 20 hours                             k8s_kubernetes-dashboard_kubernetes-dashboard-56b587f595-lmtpn_kube-system_72c284fe-113e-4f53-8b8e-11386efe4f03_0
697cd083ffac   harbor.od.com/public/pause:latest   "/pause"                 20 hours ago        Up 20 hours                             k8s_POD_nginx-dp-5dfc689474-fwqtr_kube-public_3678c27f-a086-448a-8ff5-fef77bb9688c_0
5f5010b46fe0   harbor.od.com/public/pause:latest   "/pause"                 20 hours ago        Up 20 hours                             k8s_POD_heapster-b5b9f794-79qb2_kube-system_192ad1b3-644e-4885-a3f6-0949847a025f_0
fcaa03c53378   harbor.od.com/public/pause:latest   "/pause"                 20 hours ago        Up 20 hours                             k8s_POD_kubernetes-dashboard-56b587f595-lmtpn_kube-system_72c284fe-113e-4f53-8b8e-11386efe4f03_0
eafeb87fb982   harbor.od.com/public/pause:latest   "/pause"                 20 hours ago        Up 20 hours                             k8s_POD_coredns-6b6c4f9648-jhtpx_kube-system_c0ed1d19-03b5-4eaa-9549-675e80778357_0
f1bd716b5003   94dc08f300e5                        "nginx -g 'daemon of…"   20 hours ago        Up 20 hours                             k8s_my-nginx_nginx-ds-76l6b_default_c386d5bd-3336-47a7-88da-60108853c0b8_0
9f08fe7130c0   add5fac61ae5                        "/entrypoint.sh --ap…"   20 hours ago        Up 20 hours                             k8s_traefik-ingress_traefik-ingress-hb6sz_kube-system_06920938-6fd7-4091-8afc-9698ee0bb1e0_0
634ebbdb2bca   harbor.od.com/public/pause:latest   "/pause"                 20 hours ago        Up 20 hours                             k8s_POD_nginx-ds-76l6b_default_c386d5bd-3336-47a7-88da-60108853c0b8_0
fe5e08c65d79   harbor.od.com/public/pause:latest   "/pause"                 20 hours ago        Up 20 hours        0.0.0.0:81->80/tcp   k8s_POD_traefik-ingress-hb6sz_kube-system_06920938-6fd7-4091-8afc-9698ee0bb1e0_0
root@jenkins-b69779cdc-mhgzj:/#
#和宿主机共享容器，这里查看的信息，也是宿主机10.4.7.21上的运行的docker

2.检查jenkins容器里的SSH key

root@jenkins-b69779cdc-mhgzj:/# ssh -i /root/.ssh/id_rsa  -T git@gitee.com
Warning: Permanently added 'gitee.com,212.64.62.183' (ECDSA) to the list of known hosts.
Hi Yodo1! You've successfully authenticated, but GITEE.COM does not provide shell access.
root@jenkins-b69779cdc-mhgzj:/#

3.检查jenkins容器里连接harbor.od.com

`shell
root@jenkins-b69779cdc-mhgzj:/# docker login harbor.od.com
Authenticating with existing credentials…
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

#### 4.不是maven软件
maven官方下载地址：
[maven3](https://archive.apache.org/dist/maven/maven-3/)
在运维主机hdss7-200.host.com上二进制部署，这里部署maven-3.6.1版

```shell
[root@hdss7-200 updates]# cd /opt/src/
[root@hdss7-200 src]# wget https://archive.apache.org/dist/maven/maven-3/3.6.1/binaries/apache-maven-3.6.1-bin.tar.gz
## 8u232是jenkins中java的版本
[root@hdss7-200 ~]# mkdir /data/nfs-volume/jenkins_home/maven-3.6.1-8u232
[root@hdss7-200 src]# tar xf apache-maven-3.6.1-bin.tar.gz  -C /data/nfs-volume/jenkins_home/maven-3.6.1-8u232/
[root@hdss7-200 src]# cd /data/nfs-volume/jenkins_home/maven-3.6.1-8u232/
[root@hdss7-200 maven-3.6.1-8u232]# mv apache-maven-3.6.1/* .
[root@hdss7-200 maven-3.6.1-8u232]# rm -rf apache-maven-3.6.1/

设置国内镜像

[root@hdss7-200 ~]# vim /data/nfs-volume/jenkins_home/maven-3.6.1-8u232/conf/settings.xml
 <mirrors>
    <mirror>
        <id>nexus-aliyun</id>
        <mirrorOf>*</mirrorOf>
        <name>Nexus aliyun</name>
        <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
   </mirror>
  </mirrors>

第五章：制作dubbo微服务的底包镜像

运维主机HDSS7-200.host.com上

下载基础镜像

# jre8
[root@hdss7-200 ~]# docker pull hebye/jre8:8u112
[root@hdss7-200 ~]# docker tag  fa3a085d6ef1 harbor.od.com/public/jre8:8u112
[root@hdss7-200 ~]# docker push harbor.od.com/public/jre8:8u112

# jre7 可以做两个底包镜像
[root@hdss7-200 ~]# docker pull  hebye/jre7:7u80

自定义Dockerfile

[root@hdss7-200 ~]# mkdir /data/dockerfile/jre8
[root@hdss7-200 ~]# cd /data/dockerfile/jre8/
[root@hdss7-200 jre8]#  vim Dockerfile
FROM harbor.od.com/public/jre8:8u112
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&\
    echo 'Asia/Shanghai' >/etc/timezone
ADD config.yml /opt/prom/config.yml
ADD jmx_javaagent-0.3.1.jar /opt/prom/
WORKDIR /opt/project_dir
ADD entrypoint.sh /entrypoint.sh
CMD ["/entrypoint.sh"]

获取config.yml

[root@hdss7-200 jre8]# more config.yml
---
rules:
  - pattern: '.*'
[root@hdss7-200 jre8]#

获取jmx_javaagent-0.3.1.jar

[root@hdss7-200 jre8]# wget https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/0.3.1/jmx_prometheus_javaagent-0.3.1.jar -O jmx_javaagent-0.3.1.jar

获取entrypoint.sh

[root@hdss7-200 jre8]# more entrypoint.sh
#!/bin/sh
M_OPTS="-Duser.timezone=Asia/Shanghai -javaagent:/opt/prom/jmx_javaagent-0.3.1.jar=$(hostname -i):${M_PORT:-"12346"}:/opt/prom/config.yml"
C_OPTS=${C_OPTS}
JAR_BALL=${JAR_BALL}
exec java -jar ${M_OPTS} ${C_OPTS} ${JAR_BALL}
[root@hdss7-200 jre8]#
[root@hdss7-200 jre8]# chmod  +x entrypoint.sh

创建base的私有镜像仓库

制作dubbo服务docker底包

[root@hdss7-200 jre8]# docker build . -t harbor.od.com/base/jre8:8u112
[root@hdss7-200 jre8]# docker push harbor.od.com/base/jre8:8u112
# 注意：jre7底包制作类似，这里略

第六章：使用jenkins持续构建交付dubbo服务的提供者

1.配置New job

create new jobs
Enter anitem name

dubbo-demo
Pipeline –> ok

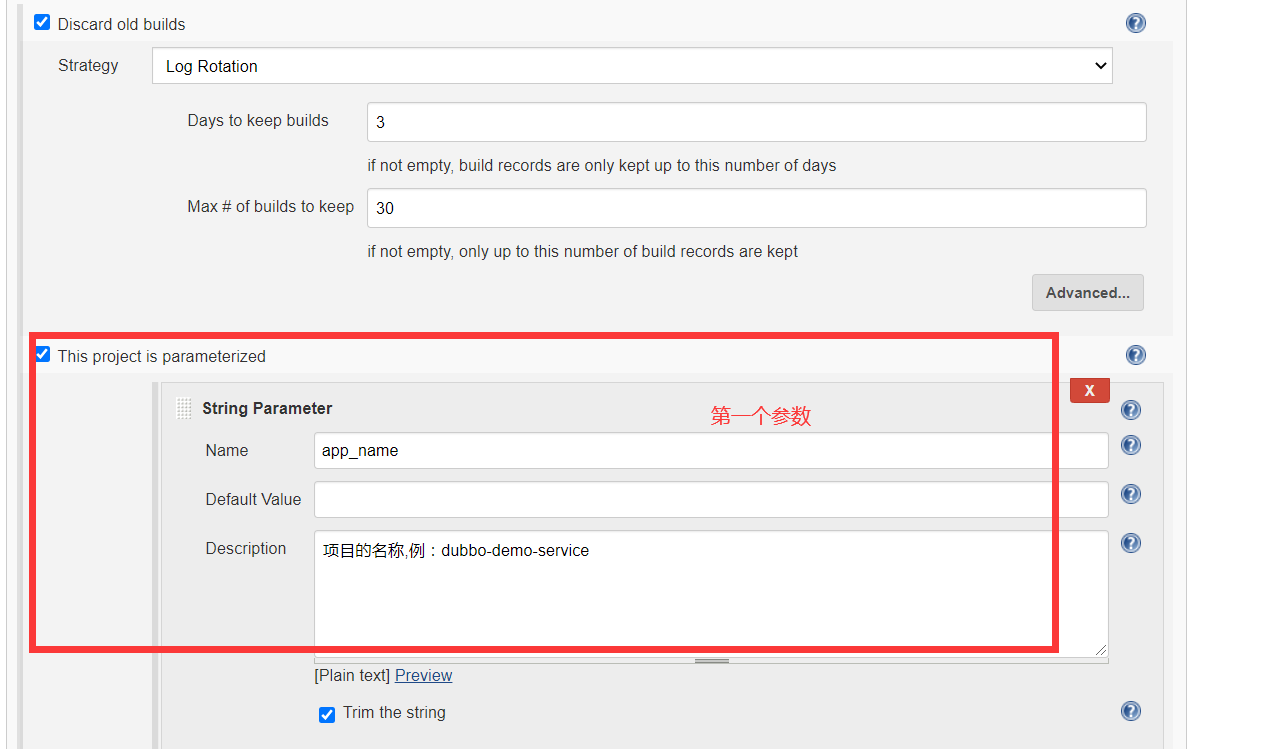

Discard old builds

Days to keep builds：3
Max # of builds to keep:30
This project is parameterized

1.Add Parameter –> String Parameter

Name：app_name
Default Value:
Description：project name，e.g：dubbo-demo-service

2.Add Parameter -> String Parameter

Name : image_name
Default Value :
Description : project docker image name. e.g: app/dubbo-demo-service

3.Add Parameter -> String Parameter

Name : git_repo
Default Value :
Description : project git repository. e.g: https://gitee.com/yodo1/dubbo-demo-service.git

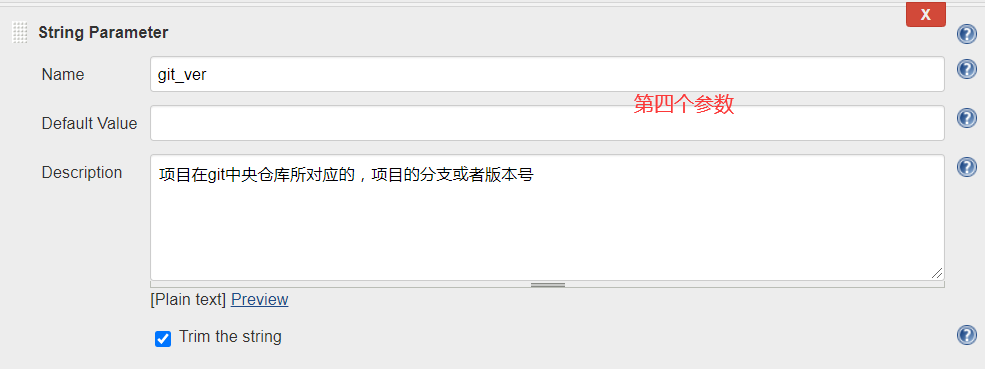

4.Add Parameter -> String Parameter

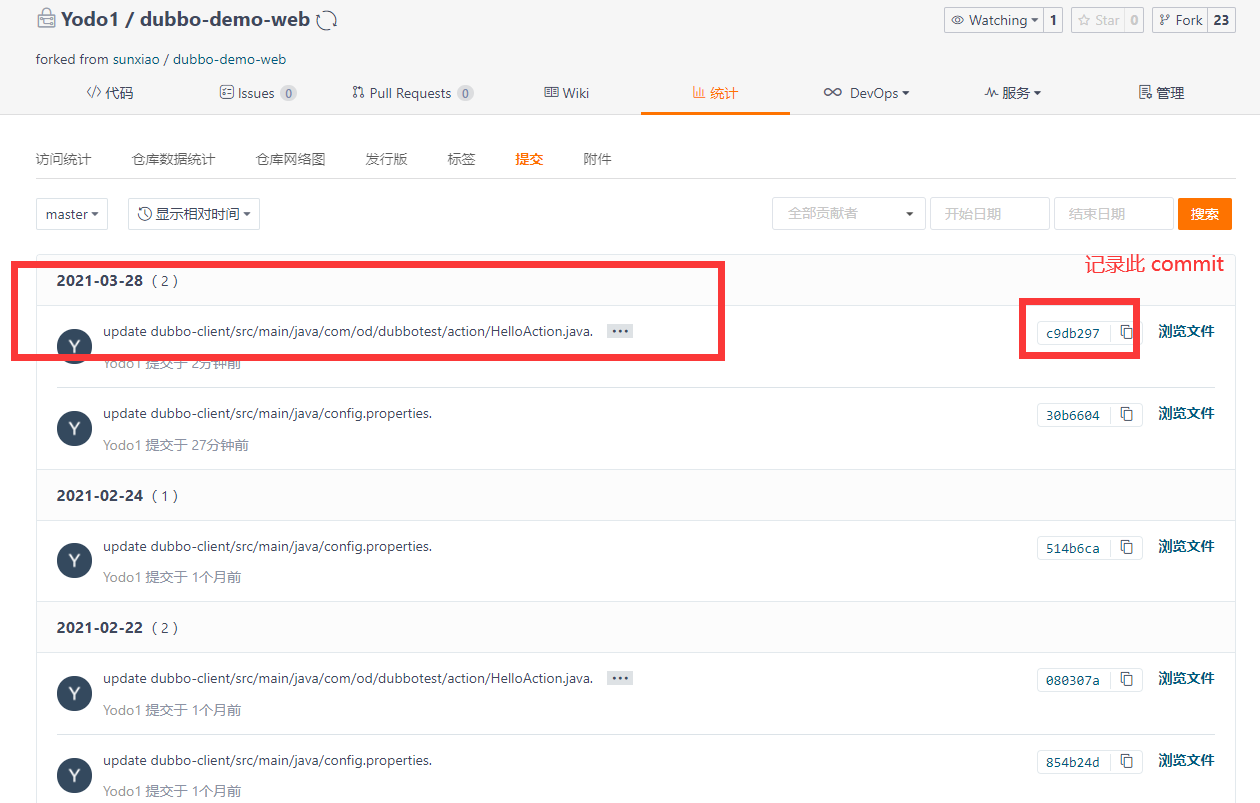

Name : git_ver
Default Value :
Description : git commit id of the project.

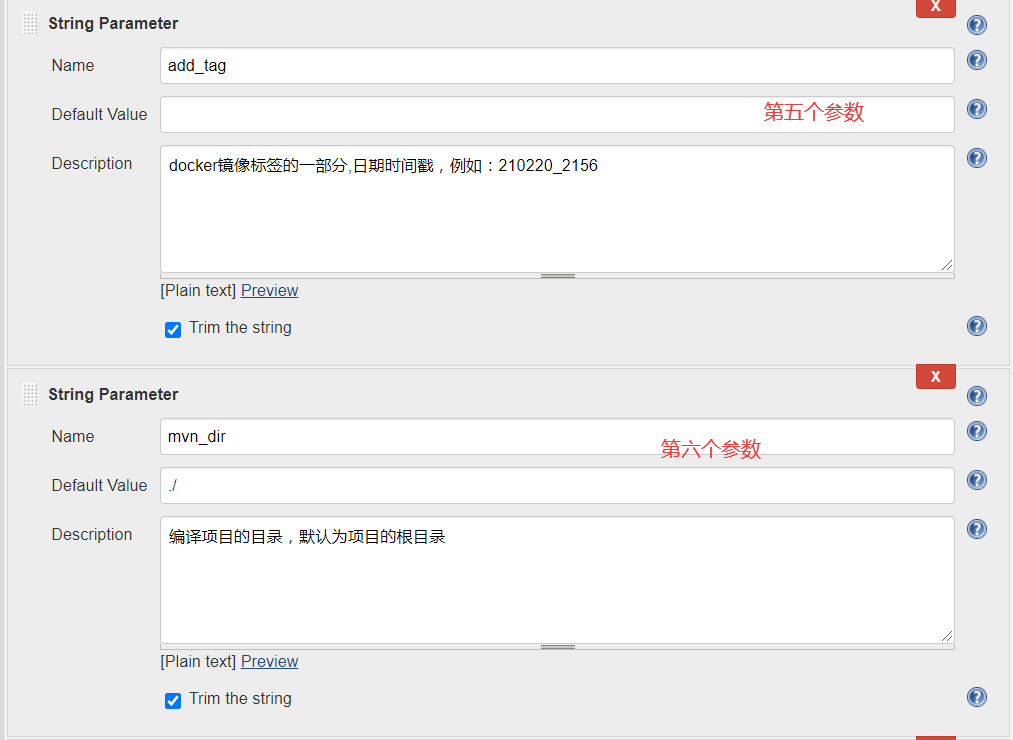

5.Add Parameter -> String Parameter

Name : add_tag
Default Value :
Description : project docker image tag, date_timestamp recommended. e.g: 190117_1920

6.Add Parameter -> String Parameter

Name : mvn_dir
Default Value : ./
Description : project maven directory. e.g: ./

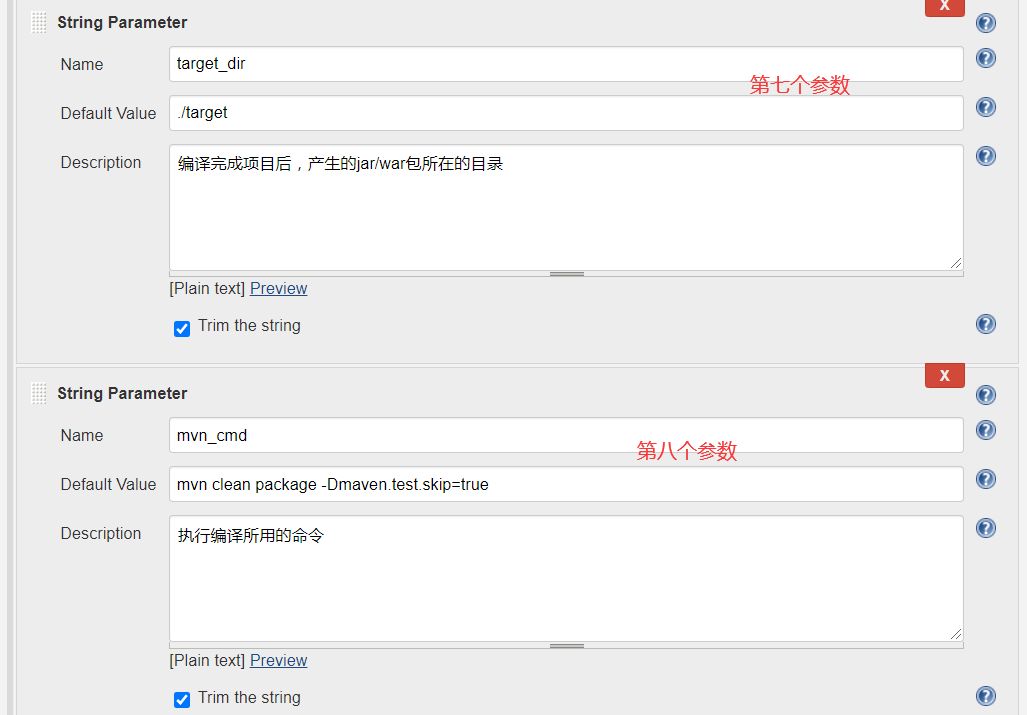

7.Add Parameter -> String Parameter

Name : target_dir
Default Value : ./target
Description : the relative path of target file such as .jar or .war package. e.g: ./dubbo-server/target

8.Add Parameter -> String Parameter

Name : mvn_cmd
Default Value : mvn clean package -Dmaven.test.skip=true
Description : maven command. e.g: mvn clean package -e -q -Dmaven.test.skip=true

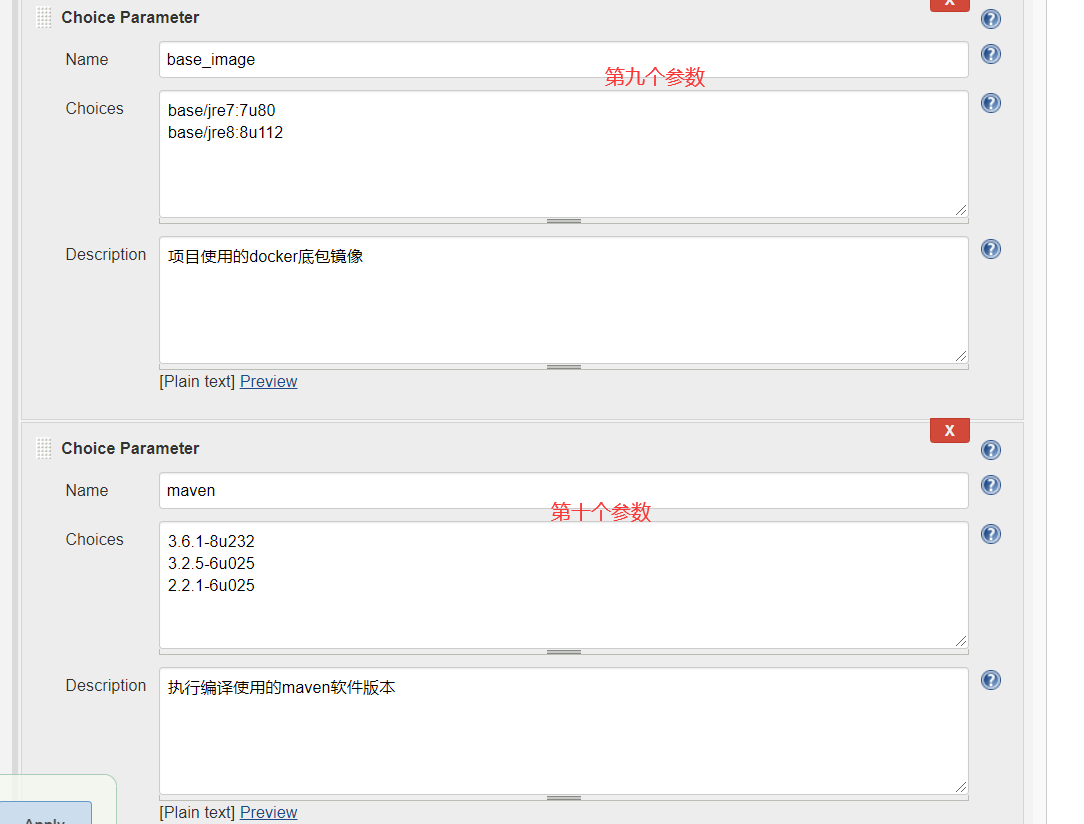

9.Add Parameter -> Choice Parameter
Name : base_image
Default Value :
- base/jre7:7u80
- base/jre8:8u112
  Description : project base image list in harbor.od.com.
10.Add Parameter -> Choice Parameter
Name : maven
Default Value :
- 3.6.1-8u232
- 3.2.5-6u025
- 2.2.1-6u025
  Description : different maven edition.

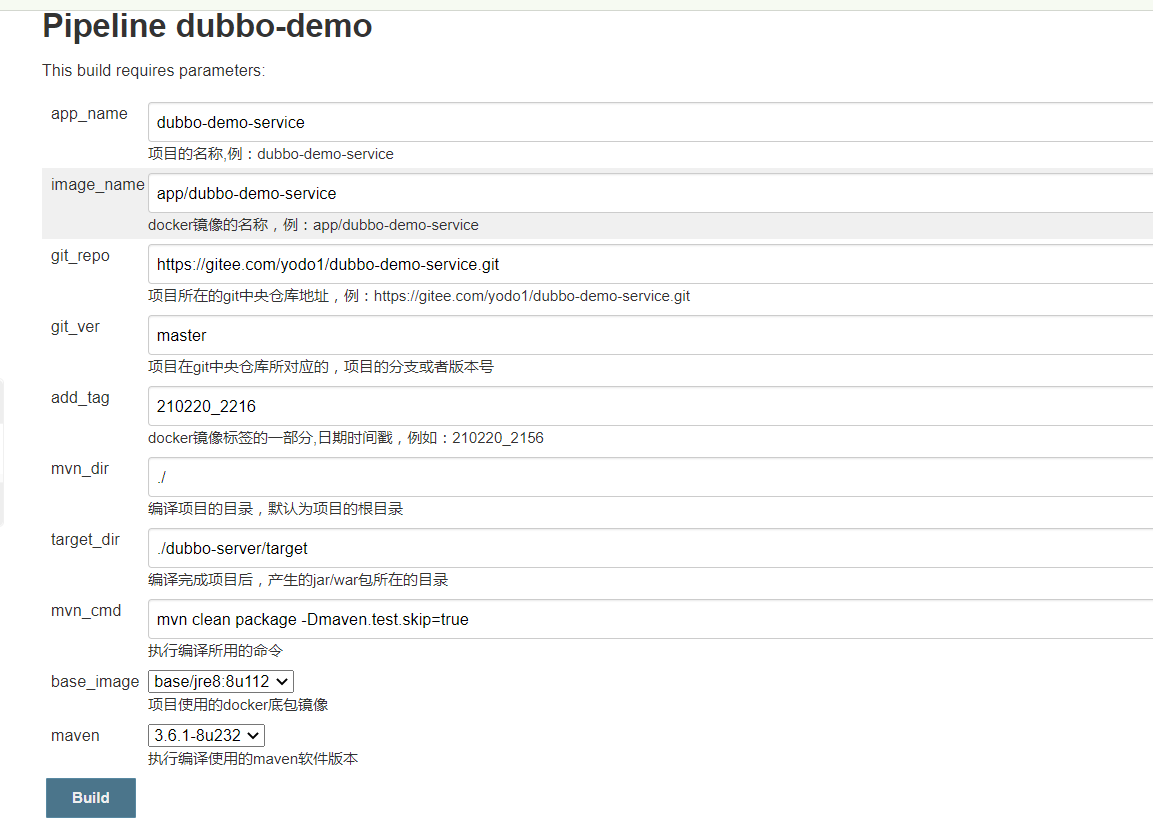

2.Pipeline Script
```
pipeline {
agent any
  stages {
    stage('pull') { //get project code from repo
      steps {
        sh "git clone ${params.git_repo} ${params.app_name}/${env.BUILD_NUMBER} && cd ${params.app_name}/${env.BUILD_NUMBER} && git checkout ${params.git_ver}"
      }
    }
    stage('build') { //exec mvn cmd
      steps {
        sh "cd ${params.app_name}/${env.BUILD_NUMBER}  && /var/jenkins_home/maven-${params.maven}/bin/${params.mvn_cmd}"
      }
    }
    stage('package') { //move jar file into project_dir
      steps {
        sh "cd ${params.app_name}/${env.BUILD_NUMBER} && cd ${params.target_dir} && mkdir project_dir && mv *.jar ./project_dir"
      }
    }
    stage('image') { //build image and push to registry
      steps {
        writeFile file: "${params.app_name}/${env.BUILD_NUMBER}/Dockerfile", text: """FROM harbor.od.com/${params.base_image}
ADD ${params.target_dir}/project_dir /opt/project_dir"""
        sh "cd  ${params.app_name}/${env.BUILD_NUMBER} && docker build -t harbor.od.com/${params.image_name}:${params.git_ver}_${params.add_tag} . && docker push harbor.od.com/${params.image_name}:${params.git_ver}_${params.add_tag}"
      }
    }
  }
}
```
第七章：交付dubbo微服务至kubernetes集群

1.dubbo服务提供者（dubbo-demo-service）

注意：提前在harbor仓库，创建私有仓库app,为下面构建镜像使用

注意：master分支 zk的配置信息在代码 dubbo-server/src/main/java/config.propertie中，如果需要修改，请修改
dubbo.registry=zookeeper://zk1.od.com:2181?backup=zk2.od.com:2181,zk3.od.com:2181
dubbo.port=20880

1.通过jenkins进行一次CI

依次填入/选择：

app_name

dubbo-demo-service

image_name

app/dubbo-demo-service

git_repo

https://gitee.com/yodo1/dubbo-demo-service.git

git_ver

master

add_tag

210328_2045

mvn_dir

./

target_dir

./dubbo-server/target

mvn_cmd

mvn clean package -Dmaven.test.skip=true

base_image

base/jre8:8u112

maven

3.6.1-8u232

点击Build进行构建，等待构建完成

2.检查harbor仓库内镜像

3..准备k8s资源配置清单(CD过程)

[root@hdss7-200 ~]# mkdir /data/k8s-yaml/dubbo-demo-service/
[root@hdss7-200 ~]# cd /data/k8s-yaml/dubbo-demo-service/
[root@hdss7-200 dubbo-demo-service]# vim dp.yaml
[root@hdss7-200 dubbo-demo-service]#
[root@hdss7-200 dubbo-demo-service]#
[root@hdss7-200 dubbo-demo-service]# cat dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: dubbo-demo-service
  namespace: app
  labels:
    name: dubbo-demo-service
spec:
  replicas: 1
  selector:
    matchLabels:
      name: dubbo-demo-service
  template:
    metadata:
      labels:
        app: dubbo-demo-service
        name: dubbo-demo-service
    spec:
      containers:
      - name: dubbo-demo-service
        image: harbor.od.com/app/dubbo-demo-service:master_210328_2045
        ports:
        - containerPort: 20880
          protocol: TCP
        env:
        - name: JAR_BALL
          value: dubbo-server.jar
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600
[root@hdss7-200 dubbo-demo-service]#

4.应用资源配置清单

在任意一台k8s运算节点执行：

创建kubernetes命名空间，私有仓库鉴权

[root@hdss7-21 ~]# kubectl create ns app
namespace/app created
[root@hdss7-21 ~]# kubectl create secret docker-registry harbor --docker-server=harbor.od.com --docker-username=admin --docker-password=Harbor12345 -n app
secret/harbor created
[root@hdss7-21 ~]#

应用资源配置清单

[root@hdss7-21 ~]# kubectl  apply -f http://k8s-yaml.od.com/dubbo-demo-service/dp.yaml
deployment.extensions/dubbo-demo-service created
[root@hdss7-21 ~]#

5.检查docker运行情况及zk里的信息

[root@hdss7-21 ~]# /opt/zookeeper/bin/zkCli.sh  -server localhost:2181
Connecting to localhost:2181
[zk: localhost:2181(CONNECTED) 0] ls /
[dubbo, zookeeper]
[root@hdss7-21 ~]# kubectl get pods -n app
NAME                                  READY   STATUS    RESTARTS   AGE
dubbo-demo-service-7976d866cb-7269q   1/1     Running   0          2m41s
[root@hdss7-21 ~]#

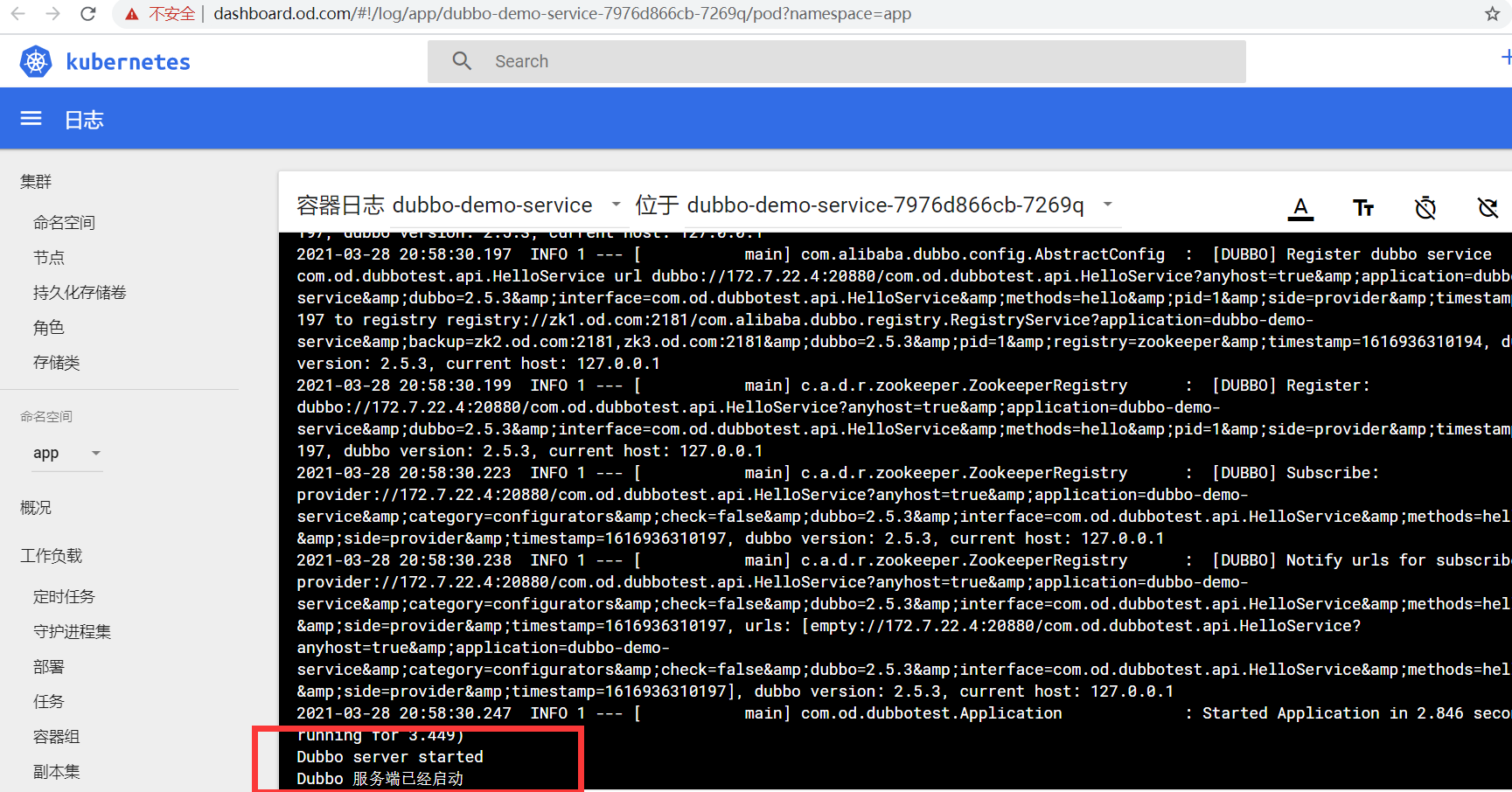

6.查看dubbo-demo-service的日志

2.交付dubbo-monitor监控服务到K8S

dubbo-monitor源码包
dubbo-monitor是监控zookeeper状态的一个服务，另外还有dubbo-admin，效果一样

1.下载源码并解压

运维主机HDSS7-200.host.com上

[root@hdss7-200 /]# cd  /opt/src/
[root@hdss7-200 src]# wget https://github.com/Jeromefromcn/dubbo-monitor/archive/master.zip
[root@hdss7-200 src]# unzip master.zip
[root@hdss7-200 src]# mv dubbo-monitor-master/ /data/dockerfile/dubbo-monitor

2.修改配置

修改dubbo-monitor主配置文件

[root@hdss7-200 src]# cd /data/dockerfile/dubbo-monitor/
[root@hdss7-200 dubbo-monitor]# vim dubbo-monitor-simple/conf/dubbo_origin.properties
dubbo.container=log4j,spring,registry,jetty
dubbo.application.name=dubbo-monitor
dubbo.application.owner=HeByeEdu
dubbo.registry.address=zookeeper://zk1.od.com:2181?backup=zk2.od.com:2181,zk3.od.com:2181
dubbo.protocol.port=20880
dubbo.jetty.port=8080
dubbo.jetty.directory=/dubbo-monitor-simple/monitor
dubbo.charts.directory=/dubbo-monitor-simple/charts
dubbo.statistics.directory=/dubbo-monitor-simple/statistics
dubbo.log4j.file=logs/dubbo-monitor-simple.log
dubbo.log4j.level=WARN

修改dubbo-monitor启动脚本

[root@hdss7-200 dubbo-monitor]# sed -r -i -e '/^nohup/{p;:a;N;$!ba;d}'  ./dubbo-monitor-simple/bin/start.sh && sed  -r -i -e "s%^nohup(.*)%exec \1%"  ./dubbo-monitor-simple/bin/start.sh

提示：记得最后的&符删除掉

调整jvm参数(非必须)

    JAVA_MEM_OPTS=" -server -Xmx128m -Xms128m -Xmn32m -XX:PermSize=16m -Xss256k -XX:+DisableExplicitGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:+UseCMSCompactAtFullCollection -XX:LargePageSizeInBytes=128m -XX:+UseFastAccessorMethods -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 "
else
    JAVA_MEM_OPTS=" -server -Xms128m -Xmx128m -XX:PermSize=16m -XX:SurvivorRatio=2 -XX:+UseParallelGC "
fi

示例：启动脚本完整配置

[root@hdss7-200 dubbo-monitor]# cat  dubbo-monitor-simple/bin/start.sh
#!/bin/bash
sed -e "s/{ZOOKEEPER_ADDRESS}/$ZOOKEEPER_ADDRESS/g" /dubbo-monitor-simple/conf/dubbo_origin.properties > /dubbo-monitor-simple/conf/dubbo.properties
cd `dirname $0`
BIN_DIR=`pwd`
cd ..
DEPLOY_DIR=`pwd`
CONF_DIR=$DEPLOY_DIR/conf

SERVER_NAME=`sed '/dubbo.application.name/!d;s/.*=//' conf/dubbo.properties | tr -d '\r'`
SERVER_PROTOCOL=`sed '/dubbo.protocol.name/!d;s/.*=//' conf/dubbo.properties | tr -d '\r'`
SERVER_PORT=`sed '/dubbo.protocol.port/!d;s/.*=//' conf/dubbo.properties | tr -d '\r'`
LOGS_FILE=`sed '/dubbo.log4j.file/!d;s/.*=//' conf/dubbo.properties | tr -d '\r'`

if [ -z "$SERVER_NAME" ]; then
    SERVER_NAME=`hostname`
fi

PIDS=`ps -f | grep java | grep "$CONF_DIR" |awk '{print $2}'`
if [ -n "$PIDS" ]; then
    echo "ERROR: The $SERVER_NAME already started!"
    echo "PID: $PIDS"
    exit 1
fi

if [ -n "$SERVER_PORT" ]; then
    SERVER_PORT_COUNT=`netstat -tln | grep $SERVER_PORT | wc -l`
    if [ $SERVER_PORT_COUNT -gt 0 ]; then
        echo "ERROR: The $SERVER_NAME port $SERVER_PORT already used!"
        exit 1
    fi
fi

LOGS_DIR=""
if [ -n "$LOGS_FILE" ]; then
    LOGS_DIR=`dirname $LOGS_FILE`
else
    LOGS_DIR=$DEPLOY_DIR/logs
fi
if [ ! -d $LOGS_DIR ]; then
    mkdir $LOGS_DIR
fi
STDOUT_FILE=$LOGS_DIR/stdout.log

LIB_DIR=$DEPLOY_DIR/lib
LIB_JARS=`ls $LIB_DIR|grep .jar|awk '{print "'$LIB_DIR'/"$0}'|tr "\n" ":"`

JAVA_OPTS=" -Djava.awt.headless=true -Djava.net.preferIPv4Stack=true "
JAVA_DEBUG_OPTS=""
if [ "$1" = "debug" ]; then
    JAVA_DEBUG_OPTS=" -Xdebug -Xnoagent -Djava.compiler=NONE -Xrunjdwp:transport=dt_socket,address=8000,server=y,suspend=n "
fi
JAVA_JMX_OPTS=""
if [ "$1" = "jmx" ]; then
    JAVA_JMX_OPTS=" -Dcom.sun.management.jmxremote.port=1099 -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.authenticate=false "
fi
JAVA_MEM_OPTS=""
BITS=`java -version 2>&1 | grep -i 64-bit`
if [ -n "$BITS" ]; then
    JAVA_MEM_OPTS=" -server -Xmx128m -Xms128m -Xmn32m -XX:PermSize=16m -Xss256k -XX:+DisableExplicitGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:+UseCMSCompactAtFullCollection -XX:LargePageSizeInBytes=128m -XX:+UseFastAccessorMethods -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 "
else
    JAVA_MEM_OPTS=" -server -Xms128m -Xmx128m -XX:PermSize=16m -XX:SurvivorRatio=2 -XX:+UseParallelGC "
fi

echo -e "Starting the $SERVER_NAME ...\c"
exec  java $JAVA_OPTS $JAVA_MEM_OPTS $JAVA_DEBUG_OPTS $JAVA_JMX_OPTS -classpath $CONF_DIR:$LIB_JARS com.alibaba.dubbo.container.Main > $STDOUT_FILE 2>&1
[root@hdss7-200 dubbo-monitor]#

3.制作镜像

准备Dockerfile,代码已提供

[root@hdss7-200 dubbo-monitor]# cat  Dockerfile
FROM jeromefromcn/docker-alpine-java-bash
MAINTAINER Jerome Jiang
COPY dubbo-monitor-simple/ /dubbo-monitor-simple/
CMD /dubbo-monitor-simple/bin/start.sh
[root@hdss7-200 dubbo-monitor]#

build镜像

[root@hdss7-200 dubbo-monitor]# docker build . -t harbor.od.com/infra/dubbo-monitor:latest
[root@hdss7-200 dubbo-monitor]# docker push harbor.od.com/infra/dubbo-monitor:latest

4.解析域名

在DNS主机HDSS7-11.host.com上：

[root@hdss7-11 ~]# tail -1 /var/named/od.com.zone
dubbo-monitor       A    10.4.7.10
[root@hdss7-11 ~]# named-checkconf
[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]# dig -t A dubbo-monitor.od.com @10.4.7.11 +short
10.4.7.10
[root@hdss7-11 ~]#

5.准备k8s资源配置清单

运维主机HDSS7-200.host.com上

[root@hdss7-200 ~]# mkdir /data/k8s-yaml/dubbo-monitor

dp.yaml

[root@hdss7-200 ~]# more /data/k8s-yaml/dubbo-monitor/dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: dubbo-monitor
  namespace: infra
  labels:
    name: dubbo-monitor
spec:
  replicas: 1
  selector:
    matchLabels:
      name: dubbo-monitor
  template:
    metadata:
      labels:
        app: dubbo-monitor
        name: dubbo-monitor
    spec:
      containers:
      - name: dubbo-monitor
        image: harbor.od.com/infra/dubbo-monitor:latest
        ports:
        - containerPort: 8080
          protocol: TCP
        - containerPort: 20880
          protocol: TCP
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600
[root@hdss7-200 ~]#

svc.yaml

[root@hdss7-200 ~]# more /data/k8s-yaml/dubbo-monitor/svc.yaml
kind: Service
apiVersion: v1
metadata:
  name: dubbo-monitor
  namespace: infra
spec:
  ports:
  - protocol: TCP
    port: 8080
    targetPort: 8080
  selector:
    app: dubbo-monitor
[root@hdss7-200 ~]#

ingress.yaml

[root@hdss7-200 ~]# more /data/k8s-yaml/dubbo-monitor/ingress.yaml
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: dubbo-monitor
  namespace: infra
spec:
  rules:
  - host: dubbo-monitor.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: dubbo-monitor
          servicePort: 8080
[root@hdss7-200 ~]#

6.应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-monitor/dp.yaml
deployment.extensions/dubbo-monitor created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-monitor/svc.yaml
service/dubbo-monitor created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-monitor/ingress.yaml
ingress.extensions/dubbo-monitor created
[root@hdss7-21 ~]#

7.浏览器访问

http://dubbo-monitor.od.com

3.构建dubbo-consumer服务

之前创建的dubbo-servuce是微服务的提供者，现在创建一个微服务的消费者。
公开仓库：微服务的提供者：https://gitee.com/yodo1/dubbo-demo-service.git
私有仓库：微服务的消费者：git@gitee.com:yodo1/dubbo-demo-web.git
注意：zk的配置信息在代码 dubbo-client/src/main/java/config.properties中，如果需要修改，请修改
dubbo.registry=zookeeper://zk1.od.com:2181?backup=zk2.od.com:2181,zk3.od.com:2181

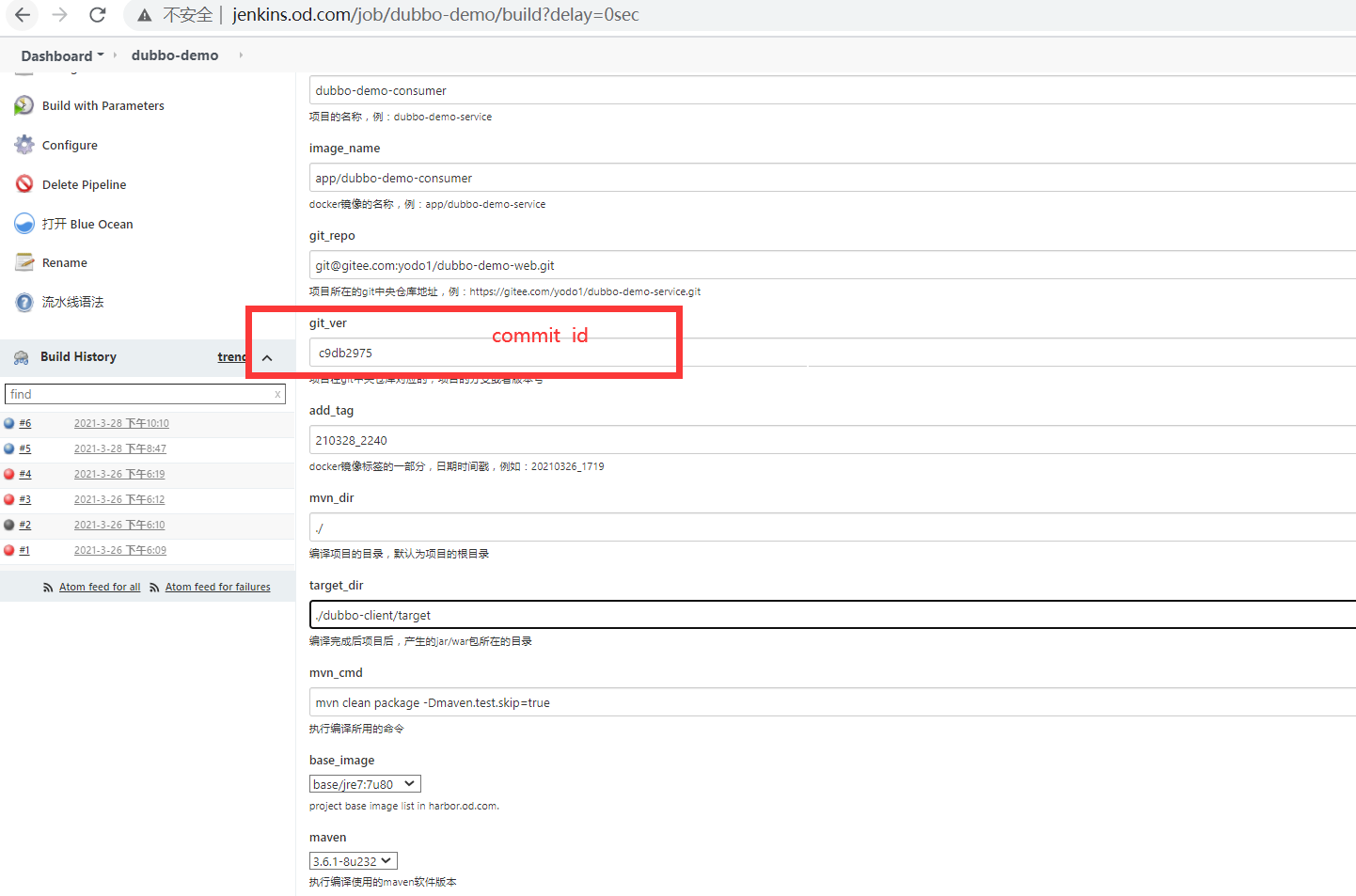

1.配置流水线

之前已经在jenkins配置了dubbo-demo项目，只需要填写参数就行了。

依次填入/选择

参数名	参数值
app_name	dubbo-demo-consumer
image_name	app/dubbo-demo-consumer
git_repo	git@gitee.com:yodo1/dubbo-demo-web.git
git_ver	master
add_tag	210328_2210
mvn_dir	./
target_dir	./dubbo-client/target
mvn_cmd	mvn clean package -e -q -Dmaven.test.skip=true
base_image	base:jre8:8u112
maven	3.6.1-8u232

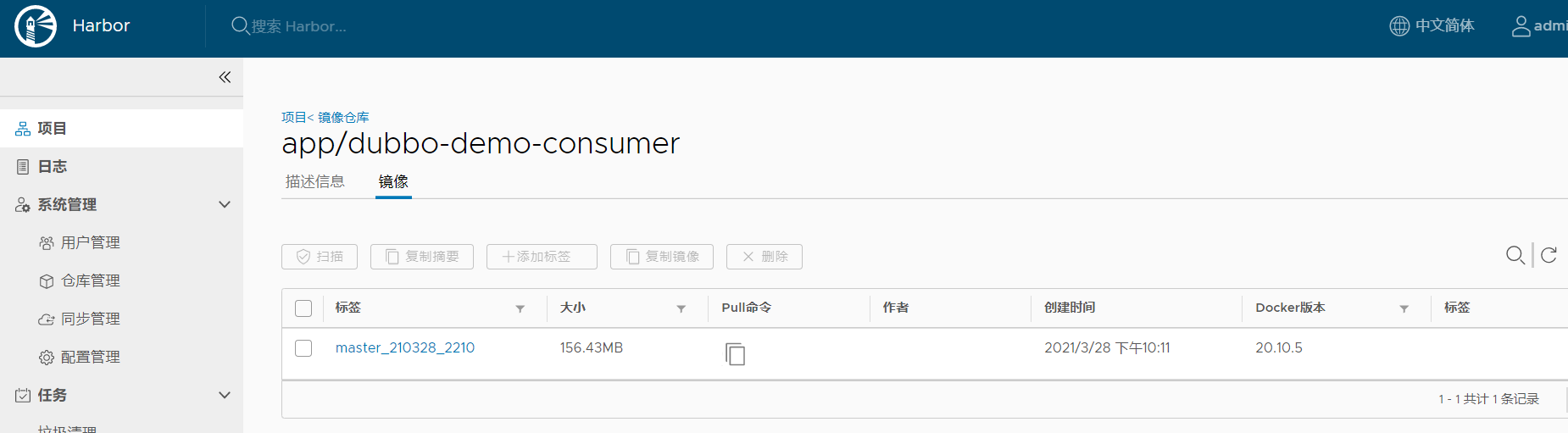

2.检查harbor仓库内镜像

3.解析域名

在DNS主机HDSS7-11.host.com上：

[root@hdss7-11 ~]# tail -1 /var/named/od.com.zone
demo           A    10.4.7.10
[root@hdss7-11 ~]# named-checkconf
[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]# dig -t A demo.od.com @10.4.7.11 +short
10.4.7.10
[root@hdss7-11 ~]#

4.准备K8S的资源配置清单

运维主机HDSS7-200.host.com上，准备资源配置清单

[root@hdss7-200 ~]#  mkdir /data/k8s-yaml/dubbo-demo-consumer
[root@hdss7-200 ~]# cd /data/k8s-yaml/dubbo-demo-consumer/
[root@hdss7-200 dubbo-demo-consumer]#

dp.yaml

[root@hdss7-200 dubbo-demo-consumer]# more dp.yaml
kind: Deployment
apiVersion: extensions/v1beta1
metadata:
  name: dubbo-demo-consumer
  namespace: app
  labels:
    name: dubbo-demo-consumer
spec:
  replicas: 1
  selector:
    matchLabels:
      name: dubbo-demo-consumer
  template:
    metadata:
      labels:
        app: dubbo-demo-consumer
        name: dubbo-demo-consumer
    spec:
      containers:
      - name: dubbo-demo-consumer
        image: harbor.od.com/app/dubbo-demo-consumer:master_210328_2210
        ports:
        - containerPort: 8080
          protocol: TCP
        - containerPort: 20880
          protocol: TCP
        env:
        - name: JAR_BALL
          value: dubbo-client.jar
        imagePullPolicy: IfNotPresent
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600
[root@hdss7-200 dubbo-demo-consumer]#

svc.yaml

[root@hdss7-200 dubbo-demo-consumer]# more svc.yaml
kind: Service
apiVersion: v1
metadata:
  name: dubbo-demo-consumer
  namespace: app
spec:
  ports:
  - protocol: TCP
    port: 8080
    targetPort: 8080
  selector:
    app: dubbo-demo-consumer
  clusterIP: None
  type: ClusterIP
  sessionAffinity: None
[root@hdss7-200 dubbo-demo-consumer]#

ingress.yaml

[root@hdss7-200 dubbo-demo-consumer]# more ingress.yaml
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: dubbo-demo-consumer
  namespace: app
spec:
  rules:
  - host: demo.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: dubbo-demo-consumer
          servicePort: 8080
[root@hdss7-200 dubbo-demo-consumer]#

5.应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-demo-consumer/dp.yaml
deployment.extensions/dubbo-demo-consumer created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-demo-consumer/svc.yaml
service/dubbo-demo-consumer created
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dubbo-demo-consumer/ingress.yaml
ingress.extensions/dubbo-demo-consumer created
[root@hdss7-21 ~]#

6.检查docker运行情况及dubbo-monitor

[root@hdss7-21 ~]# kubectl get pods -n app
NAME                                  READY   STATUS    RESTARTS   AGE
dubbo-demo-consumer-795469c58-hgzhf   1/1     Running   0          50s
dubbo-demo-service-7976d866cb-7269q   1/1     Running   0          82m
[root@hdss7-21 ~]#

http://dubbo-monitor.od.com

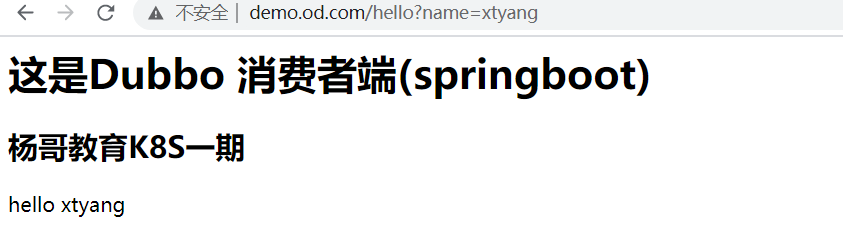

7.浏览器访问

http://demo.od.com/hello?name=xtyang

第八章：实战维护dubbo微服务集群

更新（rolling update）
- 修改代码提git（发版）
- 使用jenkins进行CI
- 修改并应用k8s资源配置清单(或者在k8s的dashboard上直接操作)

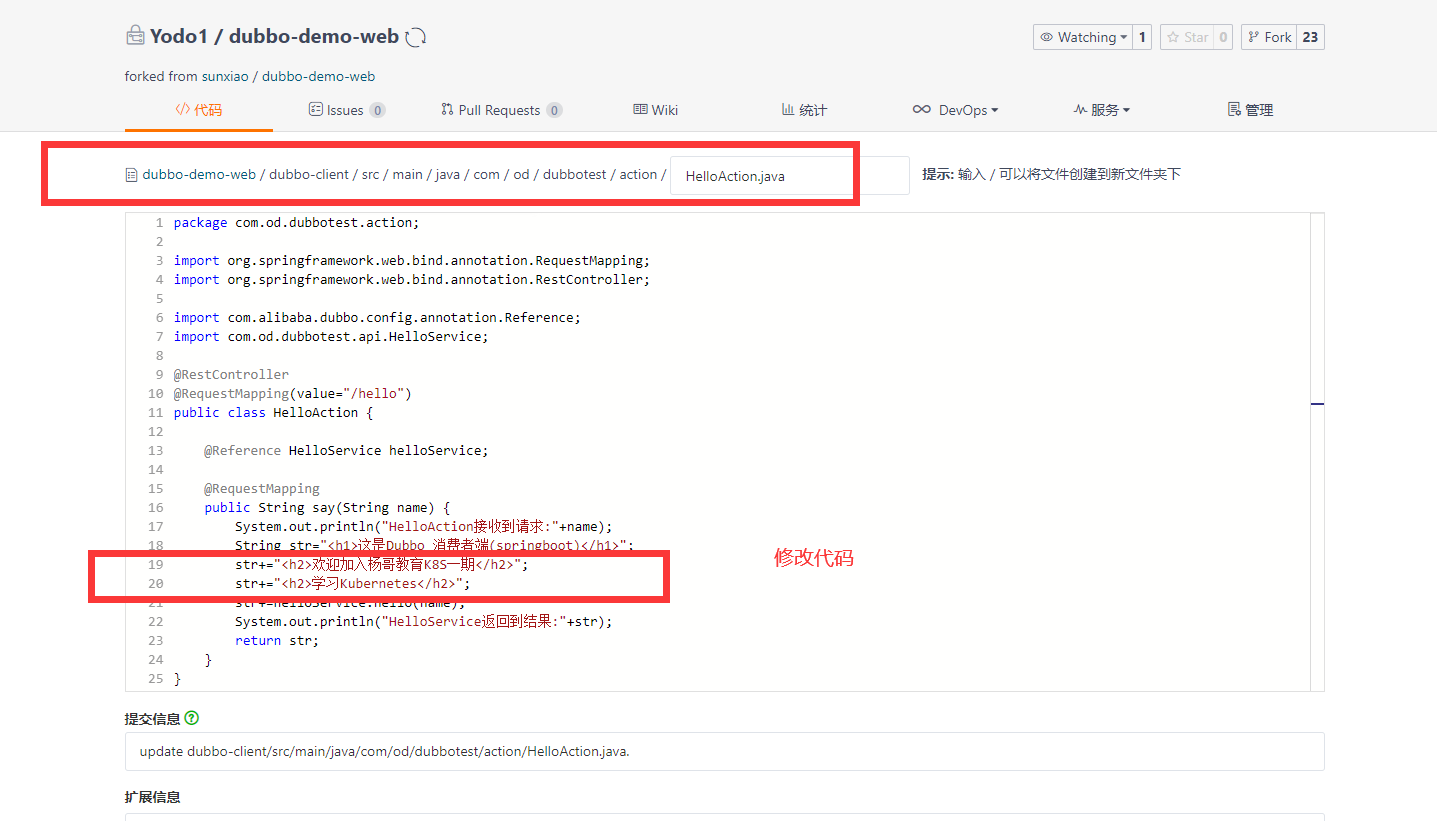

修改代码

dubbo-client/src/main/java/com/od/dubbotest/action/HelloAction.java
jenkins构建

用这个commit id 进行发版：[ c9db2975]
查看生成的镜像

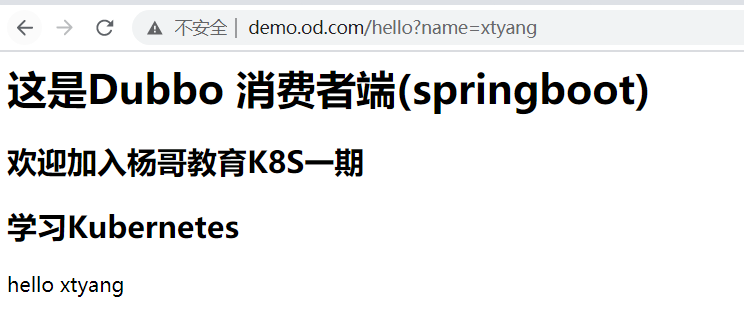

发布

用镜像 harbor.od.com/app/dubbo-demo-consumer:c9db2975_210328_2240,修改dp.yaml,或者在k8s的dashboard上直接操作进行发版

扩容(scaling)
- k8s的dashboard上直接操作
- 命令扩容
  `shell
  [root @hdss7-21 ~]# kubectl scale deployment dubbo-demo-consumer –replicas=2 -n app
  [root @hdss7-21 ~]# kubectl get pods -n app
  NAME READY STATUS RESTARTS AGE
  dubbo-demo-consumer-795469c58-fxh84 1/1 Running 0 42s
  dubbo-demo-consumer-795469c58-hgzhf 1/1 Running 1 29m
  dubbo-demo-service-7976d866cb-7269q 1/1 Running 0 111m
  [root @hdss7-21 ~]#

# 第九章：K8S灾难性毁灭测试
=====================================================
运行中的机器在某天挂了一台
```shell
[root@hdss7-21 ~]# halt

这时访问业务会有短暂的Bad Gateway

1、K8S中移除坏的节点(这时会触发自愈机制)

[root@hdss7-22 ~]# kubectl get nodes
NAME                STATUS     ROLES         AGE     VERSION
hdss7-21.host.com   NotReady   master,node   3d18h   v1.15.12
hdss7-22.host.com   Ready      master,node   3d18h   v1.15.12
[root@hdss7-22 ~]# kubectl delete node hdss7-21.host.com
node "hdss7-21.host.com" deleted
[root@hdss7-22 ~]# kubectl get nodes
NAME                STATUS   ROLES         AGE     VERSION
hdss7-22.host.com   Ready    master,node   3d18h   v1.15.12
[root@hdss7-22 ~]#

2、这时需要判断负载均衡是否要移除节点

#修改负载均衡的相关操作，注释坏掉节点的配置

3、机器修复完，服务启动正常后会自动加入集群，打标签

[root@hdss7-21 ~]# kubectl get nodes
NAME                STATUS   ROLES         AGE    VERSION
hdss7-21.host.com   Ready    <none>        8h     v1.15.12
hdss7-22.host.com   Ready    master,node   4d2h   v1.15.12
[root@hdss7-21 ~]# kubectl label node hdss7-21.host.com node-role.kubernetes.io/master=
node/hdss7-21.host.com labeled
[root@hdss7-21 ~]# kubectl label node hdss7-21.host.com node-role.kubernetes.io/node=
node/hdss7-21.host.com labeled
[root@hdss7-21 ~]# kubectl get nodes
NAME                STATUS   ROLES         AGE    VERSION
hdss7-21.host.com   Ready    master,node   8h     v1.15.12
hdss7-22.host.com   Ready    master,node   4d2h   v1.15.12
[root@hdss7-21 ~]#

4、根据测试结果是否要重启docker引擎

systemctl restart docker

5、根据情况平滑POD负载

[root@hdss7-21 ~]# kubectl get pods -n kube-system  -o wide
NAME                                    READY   STATUS    RESTARTS   AGE     IP            NODE                NOMINATED NODE   READINESS GATES
coredns-6b6c4f9648-rj98r                1/1     Running   0          10m     172.7.22.10   hdss7-22.host.com   <none>           <none>
heapster-b5b9f794-2dwwv                 1/1     Running   0          10m     172.7.22.8    hdss7-22.host.com   <none>           <none>
kubernetes-dashboard-56b587f595-vrb9h   1/1     Running   0          10m     172.7.22.9    hdss7-22.host.com   <none>           <none>
traefik-ingress-7tf9l                   1/1     Running   0          3m24s   172.7.21.2    hdss7-21.host.com   <none>           <none>
traefik-ingress-pzhlv                   1/1     Running   1          3d18h   172.7.22.2    hdss7-22.host.com   <none>           <none>
[root@hdss7-21 ~]# kubectl  delete pods kubernetes-dashboard-56b587f595-vrb9h -n kube-system
pod "kubernetes-dashboard-56b587f595-vrb9h" deleted
[root@hdss7-21 ~]# kubectl get pods -n kube-system  -o wide
NAME                                    READY   STATUS    RESTARTS   AGE     IP            NODE                NOMINATED NODE   READINESS GATES
coredns-6b6c4f9648-rj98r                1/1     Running   0          12m     172.7.22.10   hdss7-22.host.com   <none>           <none>
heapster-b5b9f794-2dwwv                 1/1     Running   0          12m     172.7.22.8    hdss7-22.host.com   <none>           <none>
kubernetes-dashboard-56b587f595-cc8lc   1/1     Running   0          6s      172.7.21.4    hdss7-21.host.com   <none>           <none>
traefik-ingress-7tf9l                   1/1     Running   0          4m42s   172.7.21.2    hdss7-21.host.com   <none>           <none>
traefik-ingress-pzhlv                   1/1     Running   1          3d18h   172.7.22.2    hdss7-22.host.com   <none>           <none>

6、总结：
1、删除k8s坏的node节点，这时故障自愈
2、注释掉坏负载均衡器上坏节点ip
3、修复好机器加入集群
4、打标签，平衡节点pods

文档更新时间: 2021-06-17 10:10 作者：xtyang

第三篇：实战交付一套dubbo微服务到K8S集群

第一章：Dubbo微服务概述

第二章：实验架构详解

1.架构图解：

2.交付说明

第三章：部署zookeeper集群

1.集群规划

2.安装jdk1.8（3台zk角色主机）

3.安装zookeeper（3台zk角色主机）

1.解压软件包

2.配置myid

3.DNS解析

4.依次启动

5.检查

第四章：部署Jenkins

1.准备镜像

2.自定义Dockerfile

3.制作自定义镜像

4.创建infra仓库

5.推送镜像到harbor

6.创建kubernetes命名空间，私有仓库鉴权

7.准备共享存储

8.准备资源配置清单

9.应用资源配置清单

10.域名解析

11.配置jenkins加速

12.浏览器访问

13.域名配置jenkins

1.初始化密码

2.跳过安装插件

3.创建管理员用户

4.调整安全选项

5.安装Blue Ocean插件

6.最后的检验工作

1.检查jenkins容器里的docker客户端

2.检查jenkins容器里的SSH key

3.检查jenkins容器里连接harbor.od.com

第五章：制作dubbo微服务的底包镜像

第六章：使用jenkins持续构建交付dubbo服务的提供者

1.配置New job

2.Pipeline Script

第七章：交付dubbo微服务至kubernetes集群

1.dubbo服务提供者（dubbo-demo-service）

1.通过jenkins进行一次CI

2.检查harbor仓库内镜像

3..准备k8s资源配置清单(CD过程)

4.应用资源配置清单

5.检查docker运行情况及zk里的信息

6.查看dubbo-demo-service的日志

2.交付dubbo-monitor监控服务到K8S

1.下载源码并解压

2.修改配置

3.制作镜像

4.解析域名

5.准备k8s资源配置清单

6.应用资源配置清单

7.浏览器访问

3.构建dubbo-consumer服务

1.配置流水线

2.检查harbor仓库内镜像

3.解析域名

4.准备K8S的资源配置清单

5.应用资源配置清单

6.检查docker运行情况及dubbo-monitor

7.浏览器访问

第八章：实战维护dubbo微服务集群

这时访问业务会有短暂的Bad Gateway
